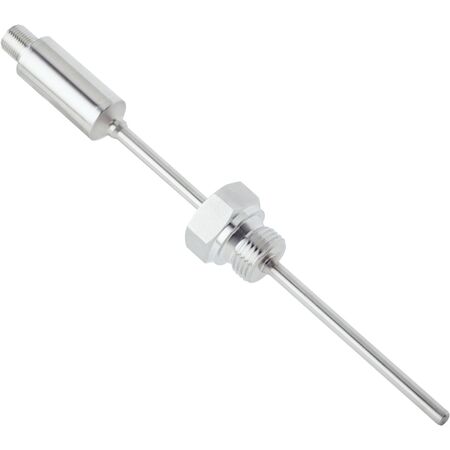

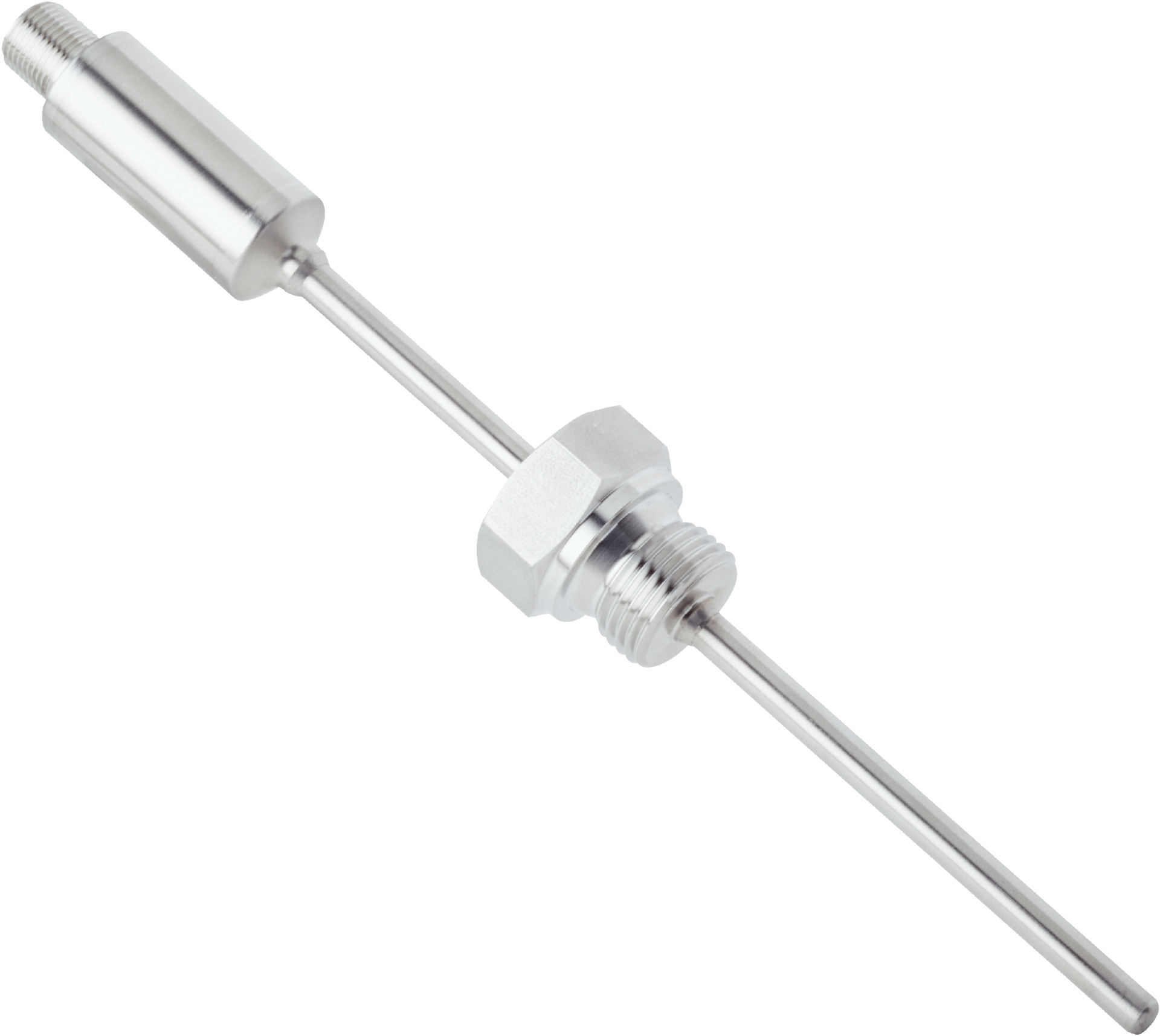

Pt1000 Temperature Sensor | -50°C to +250°C Range | 4-20mA Output | IP67 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and a durable stainless steel housing. With a 4-20mA output signal and IP67 protection, it's perfect for process control and automation systems, ensuring reliable performance even in high-pressure environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + - 9 V) / 0.023 A [Ohm]
- Process connection: Thread ¼'' NPT
- Insertion length/diameter of probe: 100 mm / 6 mm
- Wetted parts: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A according to IEC 60751
- Transmitter accuracy: ≤ ± 0.2 % of span
- Transmitter linearity: ≤ 0.1 % of span
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Dimensions (H x L x W): 120mm x 120mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Stainless steel 1.4571 housing and wetted parts for durability
- IP67 rated enclosure for protection against dust and water
- Thread ¼'' NPT process connection
- High pressure resistance up to 120 bar
- M12 round 4-pin connector for electrical connection
- Fast initialization time under 10 ms
- Class A accuracy according to IEC 60751
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing and automation systems
- Use in environments requiring high pressure resistance and IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste by extending product life
- Low power consumption with 10 V DC to 35 V DC supply voltage
- Reliable measurement reduces energy waste in process control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TCT-2ABN41006MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
