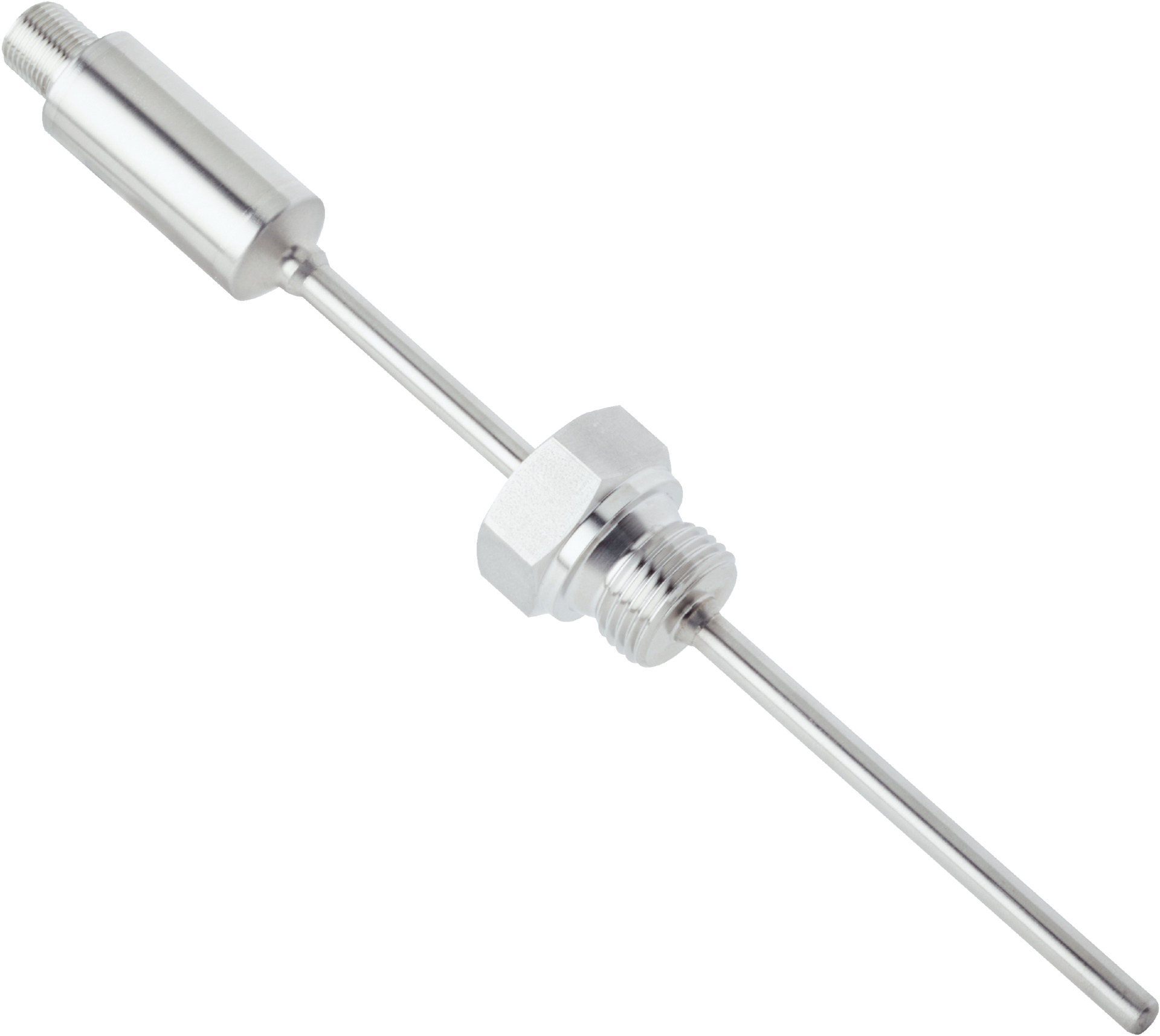

Pt1000 Temperature Sensor | -50°C to +250°C Range | 4-20mA Output | IP67 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial applications, featuring a measuring range from -50°C to +250°C and a 4-20mA output signal. Built with durable stainless steel and an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for process control and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + – 9 V) / 0.023 A [Ohm]
- Process connection: Thread ½'' NPT
- Insertion length/diameter of probe: 150 mm / 6 mm
- Wetted parts: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A according to IEC 60751
- Transmitter accuracy: ≤ ± 0.2 % of span
- Transmitter linearity: ≤ 0.1 % of span
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature: –40 °C to +85 °C
- Storage and transport temperature: –40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 10 ms
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from –50 °C to +250 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Thread ½'' NPT process connection
- Stainless steel 1.4571 wetted parts and housing for corrosion resistance
- IP67 rated enclosure for dust and water protection
- High pressure resistance up to 120 bar
- M12 round 4-pin connector for electrical connection
- Fast initialization time under 10 ms
- Class A accuracy according to IEC 60751
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial temperature sensors to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing and automation systems
- Use in environments requiring high pressure resistance and stainless steel construction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption with efficient 2-wire 4-20mA output
- High accuracy reduces waste and energy by enabling precise process control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

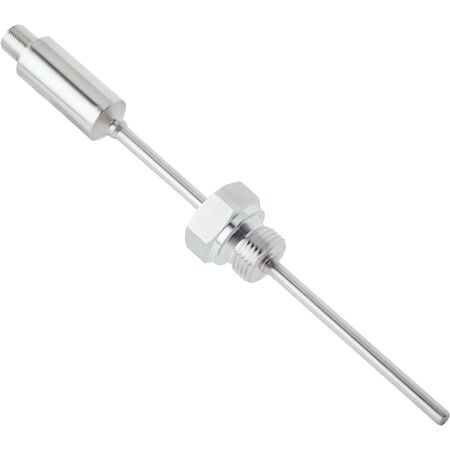

The SICK TCT-2ABN21506MZ temperature sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise and reliable temperature measurement.
