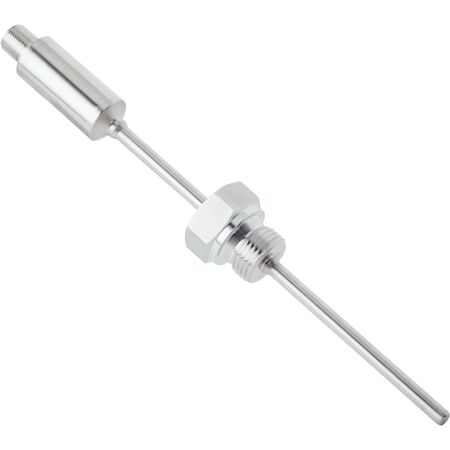

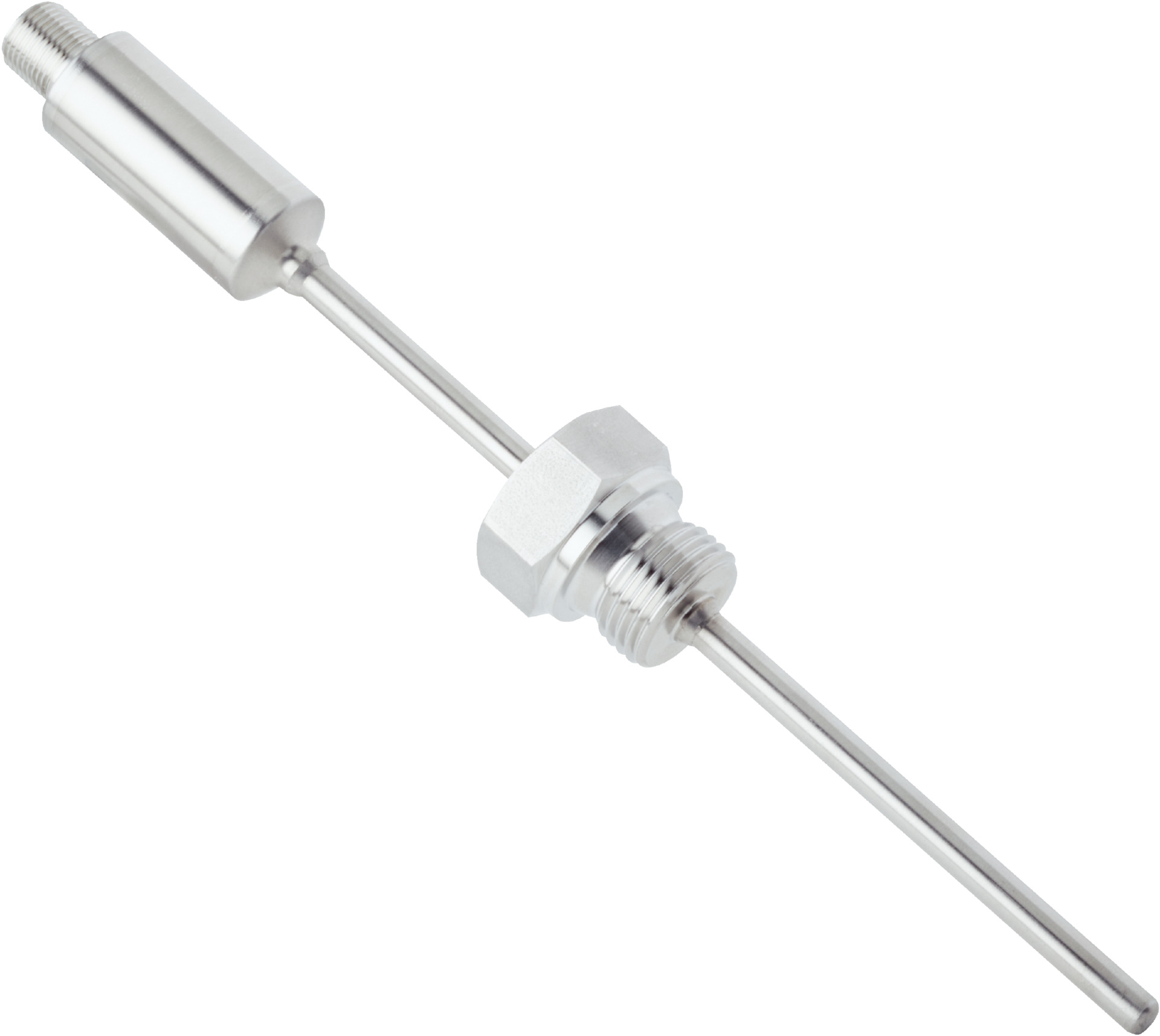

Pt1000 Temperature Sensor | -50°C to +250°C Range | 4-20mA Output | IP67 Rated | by SICK
The Pt1000 Temperature Sensor is designed for precise industrial temperature measurement, featuring a wide measuring range from -50°C to +250°C and a reliable 4-20mA output signal. Built with durable stainless steel and an IP67 rated enclosure, it's perfect for high-pressure environments and process control applications, ensuring accurate monitoring in manufacturing and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + -9 V) / 0.023 A [Ohm]
- Process connection: Thread G ¼ B
- Insertion length/diameter: 150 mm / 6 mm
- Wetted parts: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A IEC 60751
- Transmitter accuracy: ≤ ±0.2% of span
- Transmitter linearity: ≤ 0.1% of span
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Shock resistance: 500 g IEC 60751
- Vibration resistance: 3 g IEC 60751
- Dimensions (H x L x W): 180mm x 180mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Thread G ¼ B process connection
- Insertion length of 150 mm and probe diameter of 6 mm
- Stainless steel 1.4571 wetted parts and housing for durability
- Maximum process pressure up to 120 bar
- IP67 rated enclosure for dust and water protection
- M12 round 4-pin connector
- Class A sensor accuracy according to IEC 60751
- Transmitter accuracy ≤ ±0.2% of span
- Fast initialization time under 10 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and process connections to ensure safety and accuracy.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in manufacturing and automation systems
- Use in environments requiring high pressure resistance and IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20mA output
- High accuracy reduces energy waste by enabling precise process control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TCT-2ABG11506MZ temperature sensor is available for immediate purchase, ideal for industrial and process temperature measurement applications.
