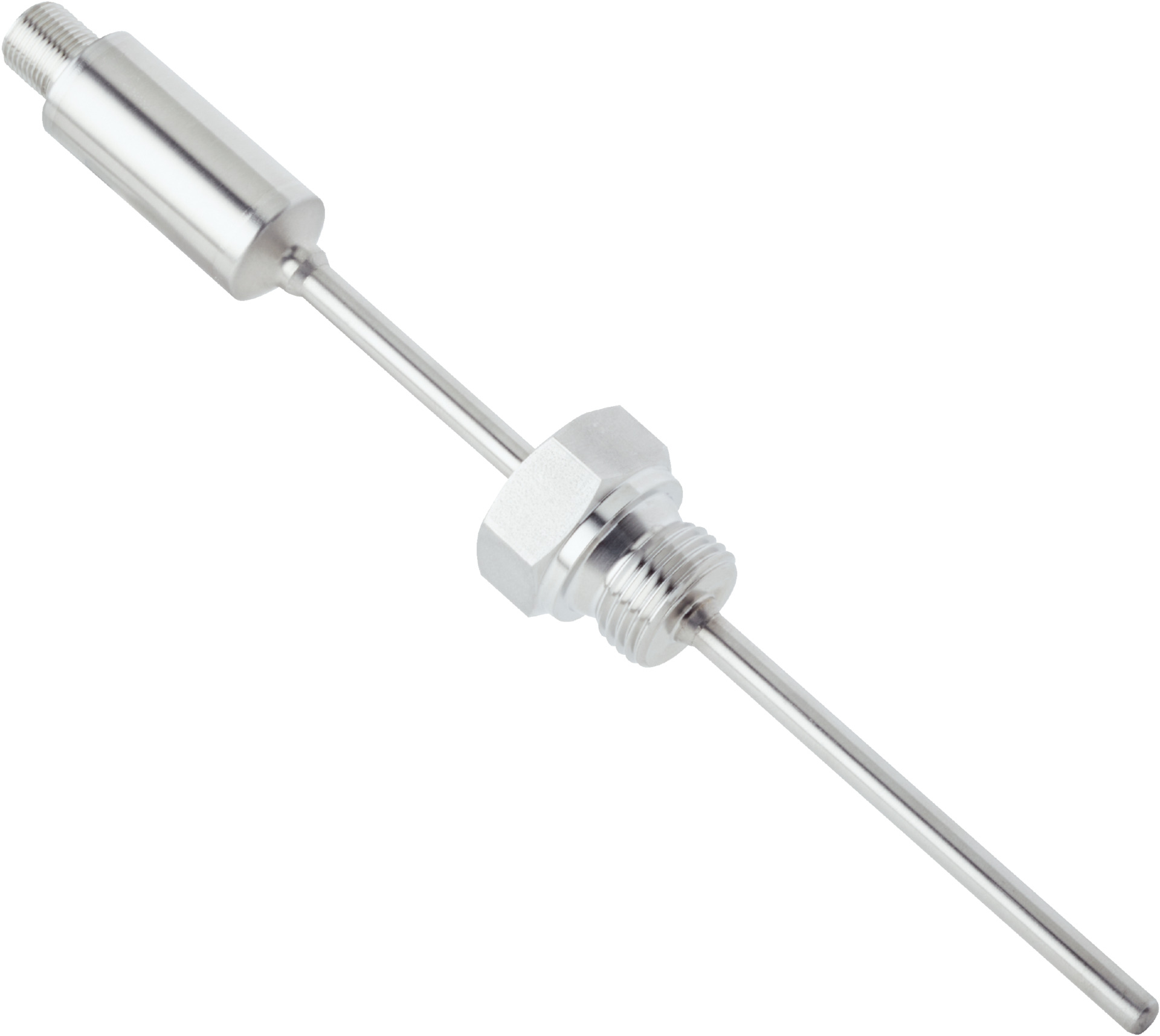

Pt1000 Temperature Sensor | -50°C to +250°C Range | IP67 Rated | Stainless Steel Housing | by SICK
The Pt1000 Temperature Sensor is designed for precise temperature measurement in industrial applications, featuring a measuring range from -50°C to +250°C and a durable stainless steel housing. With an IP67 rating, it’s perfect for harsh environments, ensuring reliable performance even under high pressure up to 120 bar. Ideal for process control and monitoring in hydraulic and pneumatic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: -50 °C to +250 °C
- Sensor element: Pt1000
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: RA ≤ (L + – 9 V) / 0.023 A [Ohm]
- Process connection: Thread G ½ B
- Insertion length/diameter of probe: 50 mm / 3 mm
- Wetted parts: Stainless steel 1.4571
- Maximum process pressure: ≤ 120 bar
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Enclosure rating: IP67
- Measuring current: 0.3 mA to 1 mA
- Supply voltage: 10 V DC to 35 V DC
- Maximum current consumption: Approx. 30 mA
- Electrical safety: Protection class III, dielectric strength 500 V AC, reverse polarity protection
- Accuracy of sensor element: Class A according to IEC 60751
- Transmitter accuracy: ≤ ± 0.2% of span
- Transmitter linearity: ≤ 0.1% of span
- Response time: t50 ≤ 2.8 s, t90 ≤ 9.1 s
- Ambient temperature: -40 °C to +85 °C
- Storage and transport temperature: -40 °C to +85 °C
- Shock resistance: 500 g (IEC 60751)
- Vibration resistance: 3 g (IEC 60751)
- Initialization time: < 10 ms
- Dimensions (H x L x W): 120mm x 70mm x 20mm
- Weight: 0.145 kg
Key Features
- Measuring range from -50 °C to +250 °C
- Pt1000 sensor element for precise temperature measurement
- 2-wire 4 mA to 20 mA output signal
- Thread G ½ B process connection with 50 mm insertion length
- Stainless steel 1.4571 housing and wetted parts for durability
- IP67 rated enclosure for protection against dust and water
- Maximum process pressure up to 120 bar
- M12 round 4-pin connector for electrical connection
- Fast initialization time under 10 ms
- Class A accuracy according to IEC 60751
- Transmitter accuracy ≤ ±0.2% of span and linearity ≤ 0.1% of span
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial temperature sensors and electrical safety standards.
Applications
- Industrial temperature measurement in process control
- Monitoring temperature in hydraulic and pneumatic systems
- Use in environments requiring high pressure resistance up to 120 bar
- Suitable for harsh environments due to IP67 enclosure rating
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Energy-efficient 2-wire 4-20mA output minimizes power consumption
- High accuracy reduces waste and improves process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

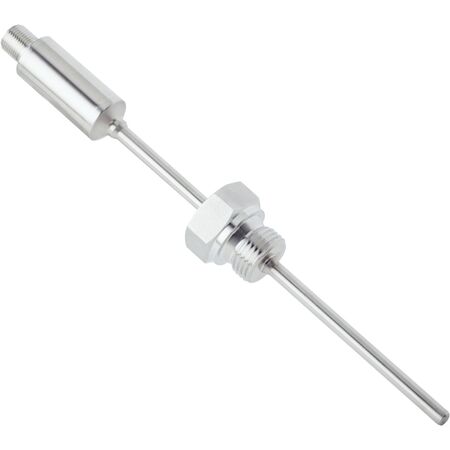

The SICK TCT-2ABGE0503MG temperature sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise and reliable temperature measurement.
