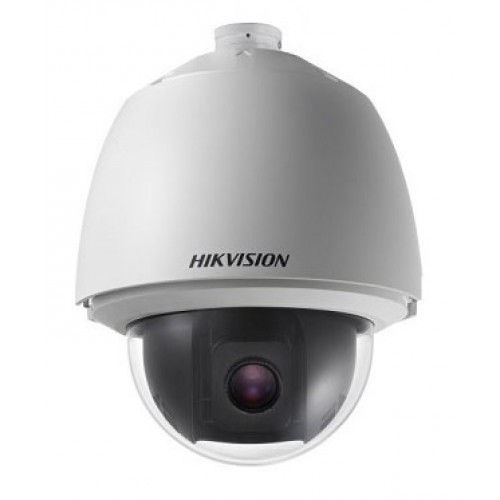

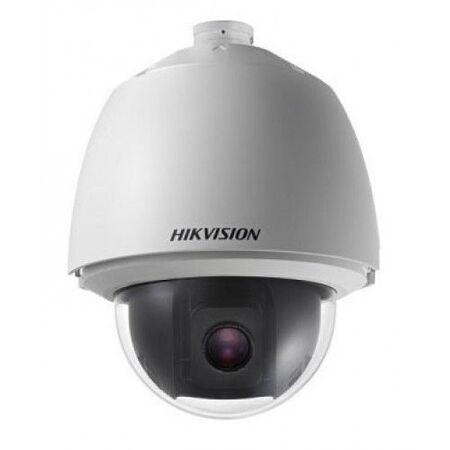

PTZ Camera 2MP 32X Hikvision
Hikvision PTZ camera features 2MP resolution and 32X zoom. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2AE5232T-A, 2MP 32x TurboHD PTZ Camera, Analog Speed Dome Camera
Technical Specifications
- Image Resolution: 2 MP, up to 1920 × 1080
- Image Sensor: 1/2.8-inch progressive-scan CMOS
- Optical Zoom: 32x
- Digital Zoom: 16x
- Focal Length: 4.8–153 mm
- Video Output: Switchable TVI, AHD, CVI and CVBS via BNC
- Pan Range: 360° continuous
- Tilt Range: Up to 90°
- Wide Dynamic Range: 120 dB WDR
- Noise Reduction: 3D digital noise reduction
- Alarm Interface: 2 alarm inputs and 1 alarm output
- Control Interface: RS-485 with Hikvision, Pelco-P and Pelco-D protocols
- Power Supply: 24 VAC
- Maximum Power Consumption: 24 W
- Operating Temperature: -30°C to 65°C
- Ingress Protection: IP66
- Impact Resistance: IK10
- Lightning and Surge Protection: TVS 4,000 V
- Dimensions (H x L x W): 326mm x 220mm x 220mm
- Weight: 3 kg
Key Features
- 2 MP Full HD imaging for CCTV surveillance
- 32x optical zoom for monitoring distant subjects
- 16x digital zoom for additional image enlargement
- 360° continuous pan for wide-area coverage
- 120 dB WDR for challenging backlit scenes
- IP66-rated housing for outdoor installations
- IK10 vandal-resistant dome construction
- Supports TVI, AHD, CVI and CVBS video formats
- Preset, patrol, pattern and scan functions
- Compatible with Hikvision-C, Pelco-P and Pelco-D control protocols
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or electrical installer. The camera requires a 24 VAC power supply and secure structural mounting. Where hard-wired, installation should comply with AS/NZS 3000 and local electrical requirements.
Applications
- Outdoor CCTV surveillance
- Commercial and industrial security systems
- Transport and infrastructure monitoring
- Car parks, compounds and perimeter security
- Large venues, public spaces and building approaches
- Long-distance observation requiring optical zoom
Standards & Compliance
- AS/NZS 3000:2018 for applicable electrical installation and wiring requirements
- AS 4806.1 for CCTV management and operation guidance
- AS/NZS 61000.6.1 and AS/NZS 61000.6.3 may apply to EMC performance in Australian CCTV installations; product-specific certification should be verified from the supplied compliance documentation
Environmental Benefits
- Durable IP66 and IK10 construction can extend service life and reduce replacement waste
- Long-range optical zoom enables wider surveillance coverage from fewer camera positions
- Electronic rather than mechanical film-based surveillance reduces consumable media use
- Repair or replacement of the camera alone can extend the useful life of the wider CCTV system
Warranty Information
Warranty coverage is model and sales-channel dependent. Hikvision Australia publishes a five-year warranty for eligible premium project-oriented PTZ Ultra and Special series products; coverage for this unspecified 2MP 32x model should be confirmed with the authorised Australian distributor or seller.
Available Now
Available through Hikvision and authorised Australian CCTV distributors, subject to model variant and distributor stock.
