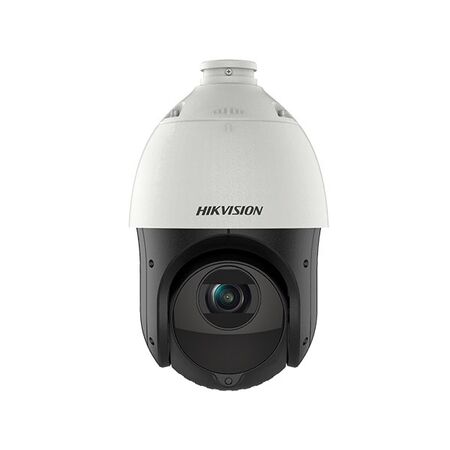

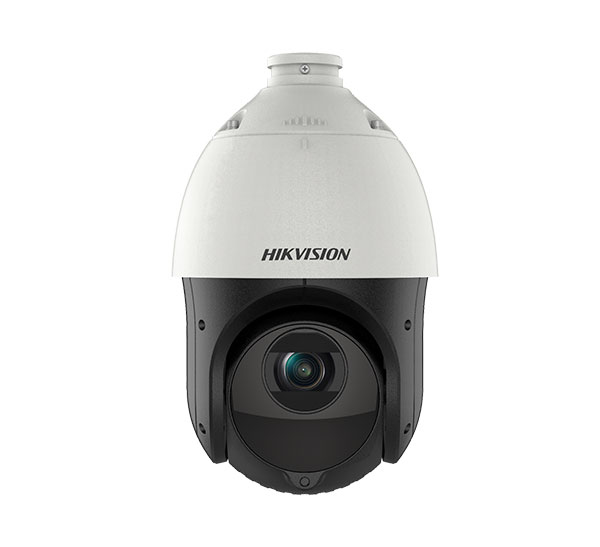

PTZ Camera 4MP 25X DS-2DE4425IW-DE Hikvision
Hikvision PTZ camera features 4MP resolution and 25X zoom. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP PTZ Speed Dome, 25x Optical Zoom Network Camera, IR PTZ CCTV Camera
Technical Specifications
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Maximum Resolution: 2560 x 1440 pixels
- Frame Rate: Up to 30 fps
- Optical Zoom: 25x
- Digital Zoom: 16x
- Focal Length: 4.8–120 mm
- Minimum Illumination: 0.005 lux colour; 0.001 lux black and white; 0 lux with IR
- Infrared Range: Up to 100 m
- Wide Dynamic Range: 120 dB WDR
- Pan Range: 360°
- Tilt Range: -15° to 90° with auto-flip
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Storage: MicroSD, microSDHC or microSDXC up to 256 GB
- Power Supply: 12 VDC or PoE+ IEEE 802.3at
- Maximum Power Consumption: 18 W
- Ingress Protection: IP66
- Housing Material: ADC12 aluminium alloy
- Dimensions (H x L x W): 290mm x 164.5mm x 164.5mm
- Weight: 2 kg
Key Features
- 4MP high-definition imaging for CCTV and security surveillance
- 25x optical zoom and 16x digital zoom for monitoring wide areas
- Up to 100 m infrared illumination for night surveillance
- 120 dB WDR, 3D digital noise reduction, electronic image stabilisation and digital defog
- 360° continuous pan with programmable PTZ presets, patrols and pattern scans
- Supports human and vehicle target classification with AcuSense-enabled variants
- MicroSD recording support up to 256 GB
- PoE+ connectivity simplifies installation over compatible Ethernet cabling
- IP66-rated housing with 6000 V lightning and surge protection
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or low-voltage technician. Configure the network, PoE power, mounting hardware, weather sealing and recording system in accordance with the manufacturer’s instructions and applicable Australian electrical and communications requirements.
Applications
- Commercial and industrial CCTV systems
- Perimeter and boundary surveillance
- Road, rail and transport monitoring
- Car parks, public spaces and large facilities
- Airports, ports, stadiums and event venues
- Remote monitoring of sites requiring long-range optical zoom
- Night-time surveillance in outdoor environments
Standards & Compliance
- RCM EMC approval listed by the manufacturer to AS/NZS CISPR 32:2015
Environmental Benefits
- PoE+ connectivity can reduce separate power cabling and associated installation materials
- H.265 video compression can reduce network bandwidth and storage requirements compared with older codecs
- RoHS compliance reduces the use of restricted hazardous substances
- Durable IP66 construction and surge protection can extend service life and reduce replacement waste
Warranty Information
Hikvision warranty support in Australia is generally available through authorised distribution channels. The exact warranty period for this model should be confirmed against the supplying distributor’s current Hikvision Australia warranty terms; premium project-oriented series may qualify for extended coverage.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; model availability may vary because this product generation has been superseded by newer PTZ models.
