Trade Discount 25%

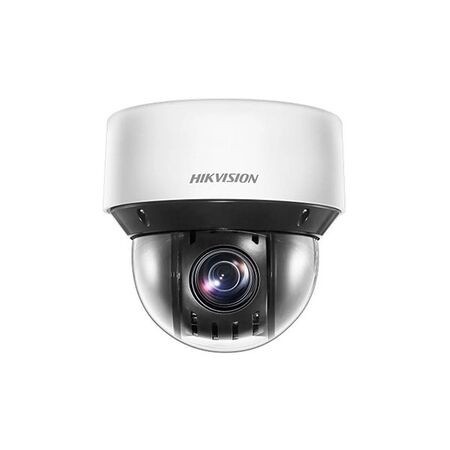

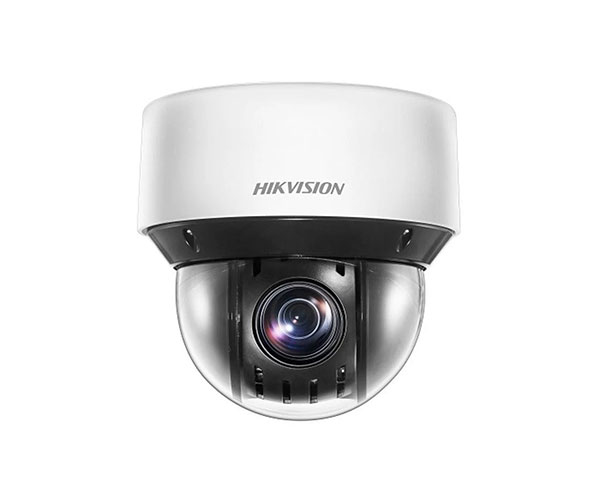

PTZ Dome Camera 4MP 25x Zoom Hikvision
Hikvision PTZ dome camera features 4MP resolution and 25x zoom. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP PTZ Dome Camera, Hikvision 25x Optical Zoom Speed Dome, Hikvision Outdoor Network PTZ Camera
Technical Specifications
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Maximum Resolution: 2560 x 1440 pixels
- Optical Zoom: 25x
- Digital Zoom: 16x
- Focal Length: 4.8–120 mm
- Infrared Range: Up to 100 m
- Pan Range: 360°
- Tilt Range: -15° to 90° with auto-flip
- Video Compression: H.265+, H.265, H.264+ and H.264
- Network Interface: RJ45 10/100 Mbps Ethernet
- Power Supply: 12 VDC or PoE+ 802.3at Class 4
- Maximum Power Consumption: 18 W, including up to 7 W IR
- Operating Temperature: -30°C to 65°C
- Ingress Protection: IP66
- Storage: MicroSD, SDHC or SDXC up to 256 GB
- Analytics: AcuSense human and vehicle target classification
- Material: ADC 12 and PC plus 10% glass fibre
- Dimensions (H x L x W): 290mm x 164.5mm x 164.5mm
- Weight: 2 kg
Key Features
- 4MP high-definition imaging for detailed surveillance footage
- 25x optical zoom for monitoring expansive areas and distant subjects
- Up to 100 m infrared illumination for low-light and night surveillance
- 360° pan and -15° to 90° tilt movement with automatic image flip
- AcuSense human and vehicle target classification
- H.265+ compression helps reduce network bandwidth and storage requirements
- PoE+ support simplifies network and power connection
- IP66 weather protection for outdoor CCTV installations
- Supports presets, patrol scans, pattern scans and scheduled PTZ tasks
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical technician. Mounting, power, network cabling, earthing and commissioning should follow the manufacturer’s instructions, applicable electrical requirements and the AS/NZS 62676 series. Confirm local licensing and privacy requirements before installation.
Applications
- Outdoor commercial CCTV systems
- Warehouses, factories and industrial sites
- Transport facilities, roads and railway areas
- Car parks, public spaces and perimeter security
- Schools, campuses and large commercial properties
- Monitoring gates, yards and other wide-area security zones
Standards & Compliance
- Applicable to video surveillance system installations designed in accordance with AS/NZS 62676.1.1:2020
- Camera-device image quality and performance may be assessed against AS/NZS 62676.5:2020
- Associated fixed wiring and electrical installation work should follow AS/NZS 3000:2018 where applicable
Environmental Benefits
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with older compression formats
- PoE+ combines power and data over a single network cable, potentially reducing cabling material and installation waste
- IP66 construction and a wide operating temperature range support extended service life in outdoor environments
- Long-range infrared operation enables night surveillance without continuous visible lighting
Warranty Information
Hikvision Australia offers warranty support subject to product series, purchase channel and regional terms. Hikvision’s published five-year warranty applies only to qualifying premium project-oriented product lines, including selected Ultra and Special Series PTZ cameras; eligibility for this camera should be confirmed with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm current regional model number and stock before ordering.
