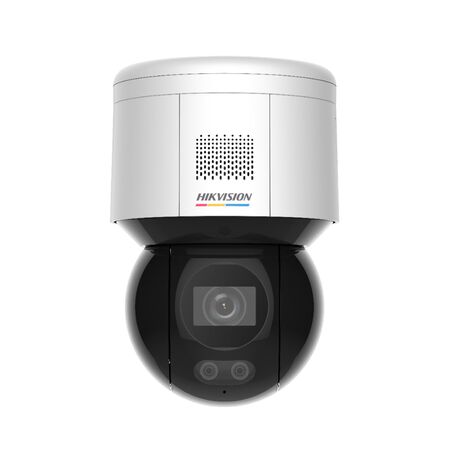

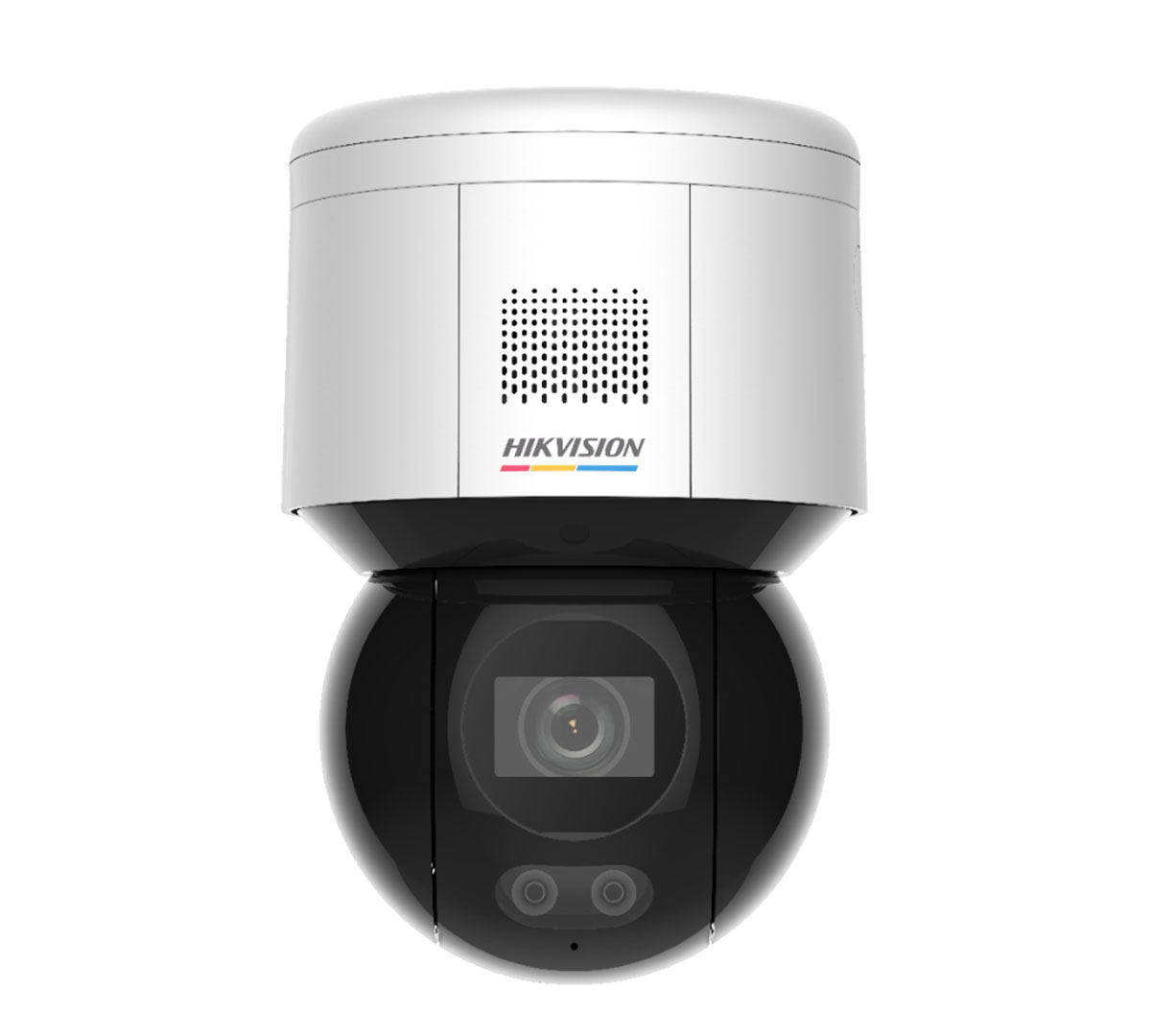

PTZ Speed Dome Camera 4MP ColorVu Hikvision
Hikvision PTZ speed dome camera features 4MP resolution and ColorVu imaging. Ideal for CCTV installs needing pan tilt zoom coverage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4MP ColorVu Network Speed Dome, 4MP PTZ CCTV Camera, Hikvision 12x ColorVu PTZ Dome
Technical Specifications
- Model: DS-2DE7A412MCG-EB
- Resolution: 4 MP
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Optical Zoom: 12x
- Digital Zoom: 16x
- Lens: 5.9–70.8 mm varifocal lens
- Pan Range: 360° endless
- Tilt Range: -15° to 90°
- Night Illumination: Up to 150 m IR and 100 m white light
- Wide Dynamic Range: 120 dB
- Video Compression: H.265+/H.265/H.264+/H.264
- Storage: microSD/microSDHC/microSDXC up to 512 GB
- Network Interface: 1 x RJ45 10/100 Mbps
- Power Supply: 24 VAC or Hi-PoE
- Maximum Power Consumption: 42 W
- Ingress Protection: IP66
- Impact Protection: IK10 excluding glass window
- Operating Temperature: -30°C to 65°C
- Material: ADC12 aluminium alloy
- Audio: Line input, line output and built-in speaker
- Alarm I/O: 2 inputs and 1 output
- Dimensions (H x L x W): 357.3mm x 220mm x 220mm
- Weight: 5.5 kg
Key Features
- ColorVu technology for 24/7 colour imaging
- 12x optical zoom for detailed views over expansive areas
- AcuSense human and vehicle classification
- Automatic and manual subject tracking
- White flashing light and audible deterrence alarm
- Up to five faces captured simultaneously
- 120 dB WDR, 3D digital noise reduction and digital defog
- Built-in microSD recording support
- ONVIF Profile S, Profile G and Profile T compatibility
- TVS 6000 V lightning and surge protection
Professional Installation Requirements
- Installation should be performed by a suitably qualified security-system installer. Mounting, extra-low-voltage cabling, network configuration and any fixed electrical connection must comply with manufacturer instructions, applicable state or territory licensing requirements, AS/NZS 62676 and AS/NZS 3000 where applicable.
Applications
- Commercial and industrial CCTV surveillance
- Roads, transport facilities and railway environments
- Airports, car parks and public spaces
- Parks, venues and perimeter monitoring
- Large-area security requiring pan, tilt and optical zoom coverage
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- RCM marking stated in the manufacturer datasheet under AS/NZS CISPR 32:2015
Environmental Benefits
- H.265/H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- Durable aluminium housing and IP66/IK10 protection can extend service life and reduce replacement waste
- microSD recording and network connectivity can reduce reliance on separate recording hardware in suitable installations
Warranty Information
Australian authorised-distributor listings commonly specify a 3-year back-to-base manufacturer warranty for Hikvision IP cameras and recording devices. Confirm coverage and eligibility with the supplying authorised distributor; Hikvision states that grey-import products may not receive Australian warranty support.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to distributor stock and regional model availability.
