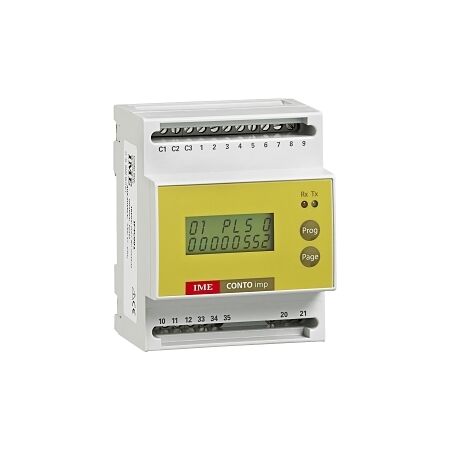

IME D4CR12 Pulse Acquisition Module with 12 Passive Inputs to RS485 240V

Pulse Acquisition Module 12 Inputs | RS485 Communication | Galvanic Separation by NHP

BRAND: NHP

SKU: D4CR12

$1,102.10 List price: $1,463.40

+ −

30 Days Return Delivery Options

Pulse acquisition module with 12 passive inputs and RS485 communication—ideal for industrial automation and commercial energy monitoring. Built for reliable data transmission, with galvanic separation for enhanced safety.

Description
Attachments

Product Name/Title: IME D4CR12 Pulse Acquisition Module with 12 Passive Inputs to RS485 240V

Brand: NHP

SKU: D4CR12

Alternatively Known As: Pulse Acquisition Module, RS485 Pulse Module, D4CR12 Interface Converter

Technical Specifications

Nominal electricity consumption: 21 mA
Transmission rate: 19.2 kBit/s
Service secondary side: RS-485
Connection type primary side: Other
Connection type secondary side: Other
Bi-directional: No
Over current protection: No
Dimensions (H x L x W): 75mm x 120mm x 100mm
Weight: 1.0 kg

Key Features

12 passive inputs for pulse acquisition.
RS485 communication for reliable data transmission.
Galvanic separation for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Automation systems, data acquisition
Commercial: Building management systems, energy monitoring

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Efficient energy consumption reduces overall environmental impact.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME D4CR12 Pulse Acquisition Module with 12 Passive Inputs to RS485 240V is available now for immediate purchase. Ideal for industrial and commercial applications.

D4CR12-AU-Pulse-Acquisition-Module-Datasheet.pdf (D4CR12-AU-Pulse-Acquisition-Module-Datasheet.pdf, 257 Kb) [Download]
