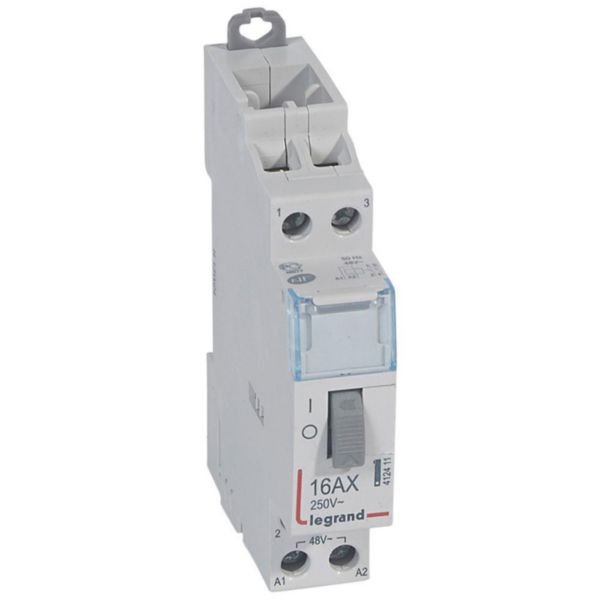

Standard Pulse Operated Latching Relay | 16A Rated | 250V AC | 2NO Contacts | 48V Control Coil | @Each of 1 | by Legrand
The Standard Pulse Operated Latching Relay is designed for efficient control in residential and small commercial electrical panels. With a 16A rating and 250V AC voltage, it features two normally open contacts and operates on a 48V control coil. Its compact design allows for easy installation on DIN rails, making it ideal for automation and centralized control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Standard Pulse Operated Latching Relay | 16A Rated | 250V AC | 2NO Contacts | 48V Control Coil | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412411
Alternatively Known As: Pulse Operated Latching Relay, CX3 Latching Relay, 2 Pole Latching Relay, 16A Latching Relay, 48V Control Coil Relay
Technical Specifications
- Contact Configuration: 2 Normally Open (2NO)
- Rated Current: 16A
- Rated Voltage: 250V AC
- Control Coil Voltage: 48V AC (43-52V)
- Control Coil Frequency: 50-60 Hz
- Mounting: DIN rail
- Width: 17.8 mm (1 module)
- Height: 95 mm
- Depth: 70.2 mm
- Mechanical function for centralized control
- Conforms to EN 60669-2-2
- Dimensions (H x L x W): 95mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Can be equipped with up to two auxiliaries for signalling and/or control
- Control directly on device via front face push-button
- Compact design, 1 module wide
- Fitted with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Mechanical function for centralized control
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to avoid risk of electric shock or fire. Follow product instructions carefully.
Applications
- Residential and small commercial electrical panels
- Control circuits requiring pulse operated latching relays
- Automation and centralized control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Mechanical latching reduces power consumption by maintaining state without continuous coil power
- Compact design reduces material usage and installation space
Warranty Information
Warranty provided by Legrand as per standard terms and conditions. Installation and use must comply with product instructions to maintain warranty validity.
Available Now
Available for immediate purchase, ideal for residential and small commercial panel control applications.
