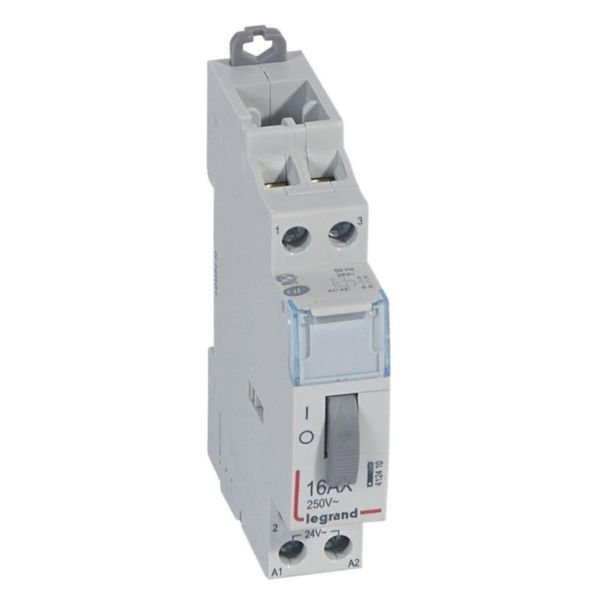

Standard Pulse Operated Latching Relay | 16A Rated | 250V AC | 2NO Contacts | @EA of 1 | by Legrand
The Standard Pulse Operated Latching Relay is designed for efficient control in residential and small commercial electrical systems. With a 16A rating and 250V AC voltage, this relay features two normally open contacts (2NO) and operates on a 24V AC control coil. Its compact design allows for easy DIN rail mounting, making it ideal for automation and control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Standard Pulse Operated Latching Relay | 16A Rated | 250V AC | 2NO Contacts | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412410
Alternatively Known As: Pulse Latching Relay, CX3 Latching Relay, Two Pole Latching Relay, 16A Latching Relay, 24V Control Coil Relay
Technical Specifications
- Contact configuration: 2 normally open (2NO)
- Rated current: 16A
- Rated voltage: 250V AC
- Control coil voltage: 24V AC (22-26V, 50-60Hz)
- Mounting: DIN rail
- Width: 17.8 mm (1 module)
- Height: 95 mm
- Depth: 70.2 mm
- Mechanical centralized control function
- Conforms to EN 60669-2-2 standard
- Dimensions (H x L x W): 95mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Pulse operated latching relay with two normally open contacts (2NO)
- Control coil voltage: 24V AC (22-26V, 50-60Hz)
- Compact design: 1 module wide, DIN rail mounting
- Equipped with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Can be equipped with up to two auxiliaries for signalling or control
- Front face push-button for on-site control
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical control panels
- Centralized control systems requiring pulse operated latching relays
- Automation and control circuits in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in control circuits
- Durable design minimizes waste and replacement frequency
Warranty Information
Legrand offers a standard warranty covering manufacturing defects; please refer to official documentation for specific terms.
Available Now
The Legrand Standard Pulse Operated Latching Relay CX³ Two Pole 16A 250V 2NO 24V is available for immediate purchase, ideal for residential and small commercial electrical control applications.
