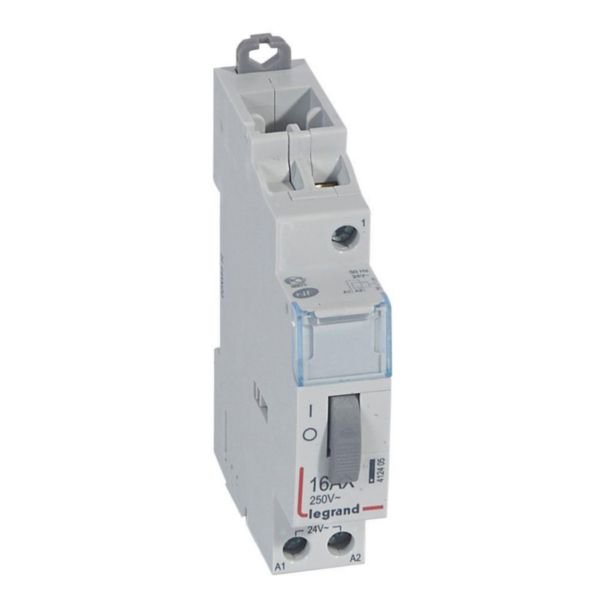

Standard Pulse Operated Latching Relay CX³ | 16A Rating | 24V Control Voltage | 1NO Contact | @EA of 1 | by Legrand
The Standard Pulse Operated Latching Relay CX³ is designed for efficient electrical control, featuring a 16A rating and a control voltage of 24V AC. Ideal for residential and small commercial applications, this compact relay with one normally open contact ensures reliable operation in centralized control systems. Its energy-efficient design minimizes power consumption, making it a smart choice for automation and control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Standard Pulse Operated Latching Relay CX³ | 16A Rating | 24V Control Voltage | 1NO Contact | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412405
Alternatively Known As: Pulse Latching Relay, CX3 Latching Relay, 1 Pole Latching Relay, 16A Latching Relay, 24V Control Relay
Technical Specifications
- Contact rating: 16A at 250V AC
- Number of contacts: 1 normally open (NO)
- Control voltage: 22-26V AC, 50-60Hz
- Mounting method: DIN rail
- Width: 17.8 mm (1 module)
- Height: 95 mm
- Depth: 70.2 mm
- Mechanical function for centralized control
- Can be controlled via front face push-button
- Dimensions (H x L x W): 95mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Pulse operated latching relay with 1 normally open contact
- Control coil voltage: 24V AC (22-26V, 50-60Hz)
- Compact design: 1 module wide (17.8 mm)
- Equipped with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Can be equipped with up to two auxiliaries for signalling or control
- Conforms to EN 60669-2-2 standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical control panels
- Centralized control systems requiring pulse operated latching relays
- Automation and control circuits in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy efficient operation reduces power consumption in control circuits
- Durable design minimizes waste and replacement frequency
Warranty Information
Warranty provided as per Legrand standard terms and conditions. Installation and use must comply with product instructions to maintain warranty validity.
Available Now
The Legrand Standard Pulse Operated Latching Relay CX³ is available for immediate purchase, ideal for residential and small commercial electrical control panel applications.
