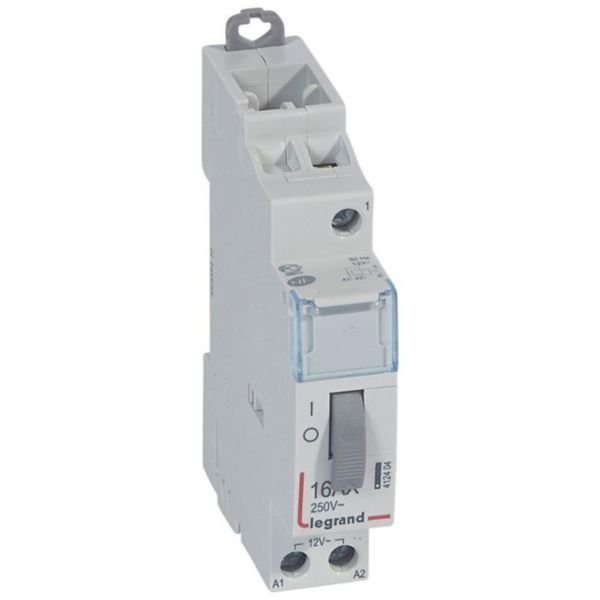

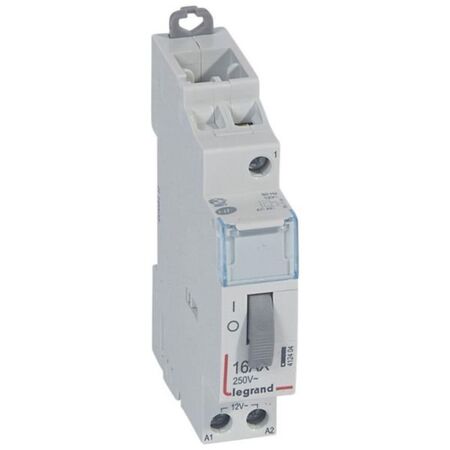

Standard Pulse Operated Latching Relay CX³ | 16A at 250V | 12V Control Coil | 1NO Contact | @EA of 1 | by Legrand
The Standard Pulse Operated Latching Relay CX³ is designed for efficient control in residential and small commercial electrical panels. With a robust 16A rating at 250V and a 12V control coil, this relay features a normally open contact and a compact design for easy DIN rail mounting. Ideal for centralized control systems, it ensures reliable operation and energy efficiency in your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact rating: 16A at 250V AC
- Number of contacts: 1 normally open (NO)
- Control voltage: 12V AC (11-13V), 50-60 Hz
- Mounting: DIN rail
- Width: 17.8 mm (1 module)
- Height: 95 mm
- Depth: 70.2 mm
- Mechanical function for centralized control
- Can be equipped with up to two auxiliaries (signalling/control)
- Front face push-button for manual control
- Dimensions (H x L x W): 95mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Pulse operated latching relay with 1 normally open contact
- Control coil voltage: 12V AC (11-13V, 50-60Hz)
- Compact design: 1 module wide (17.8 mm)
- Easy DIN rail mounting with two clamps for secure installation
- Label holder for clear circuit identification
- Can be equipped with up to two auxiliaries for signalling or control
- Front face push-button for on-site manual control
- Conforms to EN 60669-2-2 standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Control circuits requiring pulse operated latching relays
- Centralized control systems in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy efficient operation reduces power consumption in control circuits
- Durable design minimizes waste and replacement frequency
Warranty Information
Legrand standard warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Standard Pulse Operated Latching Relay CX³ is available for immediate purchase, ideal for residential and small commercial electrical control applications.
