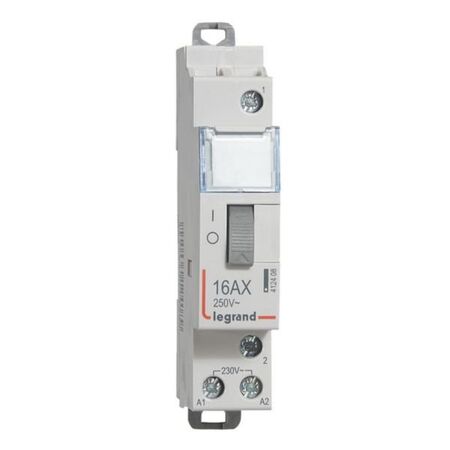

Standard Pulse Operated Latching Relay CX³ | 16A | 250V | 1NO Contact | @EA of 1 | by Legrand
The Standard Pulse Operated Latching Relay CX³ is designed for reliable control in residential and small commercial electrical panels. With a maximum switching current of 16A and a control coil voltage of 230V, this compact relay features a single normally open contact and is perfect for automation and control circuits. Its halogen-free construction ensures minimal environmental impact while providing long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Standard Pulse Operated Latching Relay CX³ | 16A | 250V | 1NO Contact | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412408
Alternatively Known As: Pulse Latching Relay, CX3 Latching Relay, Single Pole Latching Relay, 16A Latching Relay, 230V Control Coil Relay
Technical Specifications
- Control voltage: 210-250 V AC, 50-60 Hz
- Max switching current: 16 A (cos phi = 0.6)
- Number of contacts: 1 normally open (NO)
- Mounting method: DIN rail with two clamps
- Degree of protection: IP3X
- Impact strength: IK04
- Operating temperature range: -25 to 60 °C
- Storage temperature range: -40 to 70 °C
- Terminal capacity: 0.75-6 mm² screwed terminals
- Electric supply direction: From the bottom
- Stress test conformity: 1000 V
- Width: 17.8 mm, Height: 95 mm, Depth: 70.2 mm
- Dimensions (H x L x W): 95mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Pulse operated latching relay with 1 normally open contact
- Compact design, 1 module wide for easy DIN rail mounting
- Can be equipped with up to two auxiliaries for signalling or control
- Front face push-button for on-site manual control
- Label holder for clear circuit identification
- Suitable for manual operation
- Halogen free materials
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical control panels
- Centralized control systems requiring pulse operated latching relays
- Automation and control circuits in buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free construction reduces environmental impact
- Compact size reduces material usage and waste
- Designed for long service life to minimize replacement frequency
Warranty Information
Warranty provided as per Legrand standard terms and conditions. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand Standard Pulse Operated Latching Relay CX³ Single Pole 16A 250V 1NO 230V Control Coil is available for immediate purchase, ideal for residential and small commercial panel control applications.
