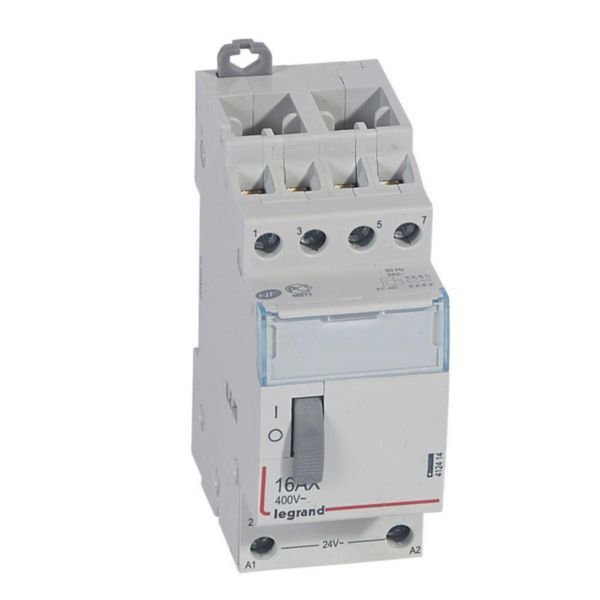

Standard Pulse Operated Latching Relay CX³ | 16A | 250V AC | 4NO Contacts | 24V Control Coil | @EA of 1 | by Legrand
The Standard Pulse Operated Latching Relay CX³ is designed for efficient electrical control with 4 normally open contacts and a 16A rating. Operating at 250V AC with a 24V control coil, it's perfect for residential and small commercial applications. This relay features a mechanical function for centralized control, ensuring reliable performance while reducing power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Standard Pulse Operated Latching Relay CX³ | 16A | 250V AC | 4NO Contacts | 24V Control Coil | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412414
Alternatively Known As: Pulse Operated Latching Relay, CX3 Latching Relay, 4 Pole Latching Relay, 16A Latching Relay, 24V Control Coil Relay
Technical Specifications
- Rated current: 16A
- Rated voltage: 250V AC
- Number of contacts: 4 normally open (NO)
- Control coil voltage: 24V AC (22-26V, 50-60Hz)
- Mounting: DIN rail
- Width: 17.8 mm (1 module)
- Height: 95 mm
- Depth: 70.2 mm
- Mechanical function for centralized control
- Conforms to EN 60669-2-2
- Dimensions (H x L x W): 95mm x 70mm x 18mm
- Weight: 0.15 kg
Key Features
- Pulse operated latching relay with 4 normally open contacts
- Control coil voltage: 24V AC (22-26V, 50-60Hz)
- Mechanical function for centralized control
- Equipped with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Can be equipped with up to two auxiliaries for signalling or control
- Front face push-button for on-site control
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical control panels
- Centralized control systems requiring pulse operated latching relays
- Automation and control circuits in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Mechanical latching reduces power consumption by maintaining state without continuous coil power
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty provided as per Legrand standard terms and conditions. Installation and use must comply with product instructions to maintain warranty validity.
Available Now
The Legrand Standard Pulse Operated Latching Relay CX³ Four Pole 16A 250V 4NO 24V Control Coil is available for immediate purchase. Ideal for residential and small commercial panel control applications.
