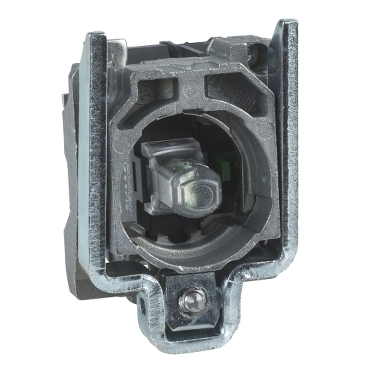

Push Button Body 24/G/1N/0+1N/ | 1 NO + 1 NC Contact | 22mm Mounting | by Clipsal
The Push Button Body 24/G/1N/0+1N/ is designed for industrial applications, featuring a robust actuator with 1 normally open and 1 normally closed contact configuration. Ideal for machinery start/stop operations and automation systems, this push button ensures high mechanical durability with a lifespan of up to 10 million cycles, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Push Button Body 24/G/1N/0+1N/ | 1 NO + 1 NC Contact | 22mm Mounting | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW0B35
Alternatively Known As: Clipsal industrial push button, SCHZB4BW0B35, Clipsal control switch, Clipsal 22mm push button, Clipsal momentary switch
Technical Specifications
- Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Mounting diameter: 22mm
- Rated insulation voltage: 600V
- Thermal current: 10A
- Mechanical durability: 10,000,000 cycles
- Operating temperature: -25°C to +70°C
- Material: High-grade plastic and metal components
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Robust push button actuator body for industrial applications
- 1 normally open and 1 normally closed contact configuration
- Suitable for 22mm diameter panel cutouts
- High mechanical durability for frequent operation
- Easy installation and maintenance
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop operations
- Automation systems
- Manufacturing equipment
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Push Button Body 24/G/1N/0+1N/ SCHZB4BW0B35 is available for immediate purchase. Ideal for industrial control panels and automation systems.
