Push Button Digital Dimmer | 230-240V | 350W Max Load | LED & CFL Compatible by Cabac
Push button digital dimmer with 230-240V operation and 350W max load—ideal for dimmable LED and CFL lighting. Built for energy efficiency, with advanced protection and multiway dimming capability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

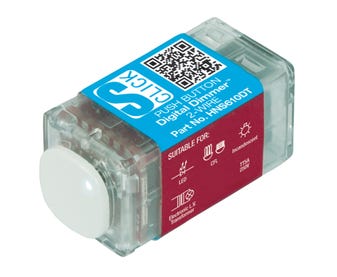

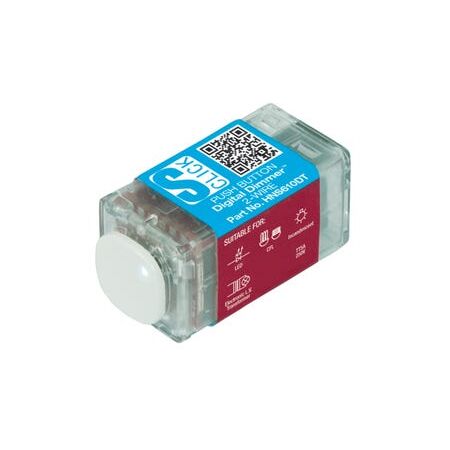

Product Name/Title: Push Button Digital Dimmer
Brand: Cabac
SKU: HNS610DT
Alternatively Known As: Digital Push Button Dimmer, LED Dimmer Switch, Push Button Light Dimmer, Multiway Digital Dimmer
Technical Specifications
- Operating Voltage: 230-240Va.c. 50Hz
- Operating Temperature: 0 to +50 degrees Celsius
- Maximum Load: 350W
- Minimum Load: 1W
- Maximum Current Capacity: 1.5A
- Certified Standard: AS/NZS 60669.2.1, CISPR15
- Not suitable for fans and motors
- Dimensions (H x L x W): 50mm x 40mm x 50mm
- Weight: 0.2 kg
Key Features
- Push button digital dimmer and ON/OFF switch in one
- Improved over current, over voltage and over temperature protection
- Patented ripple tone rejection
- Quick tap to turn lights ON or OFF at last set brightness
- Long press ramps brightness up or down
- Deep dimming to zero on most lamps
- Multiway dimming enabled with HNS020RB Remote Button (sold separately)
- Timed dimming feature activated by double tap
- LED indicator blinks every 5 seconds during timed dimming
Professional Installation Requirements
- Must be installed as part of a fixed wire electrical installation by a licensed electrical contractor or similarly qualified person. Only one dimmer per lamp is allowed.
Applications
- Dimmable LED lighting
- Dimmable CFL lighting
- Multiway dimming setups
Standards & Compliance
- AS/NZS 60669.2.1
Environmental Benefits
- Enables energy savings by allowing precise dimming of LED and CFL lights
- Supports longer lamp life through controlled dimming
- Reduces power consumption by dimming lights when full brightness is not needed
Warranty Information
Warranty details available from the manufacturer; typically 2 years against manufacturing defects.
Available Now
The Cabac Push Button Digital Dimmer HNS610DT is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
