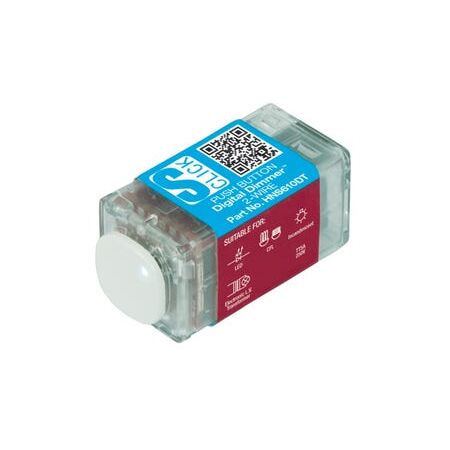

Push Button Digital Dimmer 230-240V 350W Max Load Cabac
Push button digital dimmer with 230-240V operation and 350W max load—ideal for dimmable LED and CFL lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 230-240Va.c. 50Hz
- Operating Temperature: 0 to +50 degrees Celsius
- Maximum Load: 350W
- Minimum Load: 1W
- Maximum Current Capacity: 1.5A
- Certified Standard: AS/NZS 60669.2.1, CISPR15
- Not suitable for fans and motors
- Dimensions (H x L x W): 50mm x 40mm x 50mm
- Weight: 0.2 kg
Key Features
- Push button digital dimmer and ON/OFF switch in one
- Improved over current, over voltage and over temperature protection
- Patented ripple tone rejection
- Quick tap to turn lights ON or OFF at last set brightness
- Long press ramps brightness up or down
- Deep dimming to zero on most lamps
- Multiway dimming enabled with HNS020RB Remote Button (sold separately)
- Timed dimming feature activated by double tap
- LED indicator blinks every 5 seconds during timed dimming
Professional Installation Requirements
- Must be installed as part of a fixed wire electrical installation by a licensed electrical contractor or similarly qualified person. Only one dimmer per lamp is allowed.
Applications
- Dimmable LED lighting
- Dimmable CFL lighting
- Multiway dimming setups
Standards & Compliance
- AS/NZS 60669.2.1
Environmental Benefits
- Enables energy savings by allowing precise dimming of LED and CFL lights
- Supports longer lamp life through controlled dimming
- Reduces power consumption by dimming lights when full brightness is not needed
Warranty Information
Warranty details available from the manufacturer; typically 2 years against manufacturing defects.
Available Now
The Cabac Push Button Digital Dimmer HNS610DT is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
