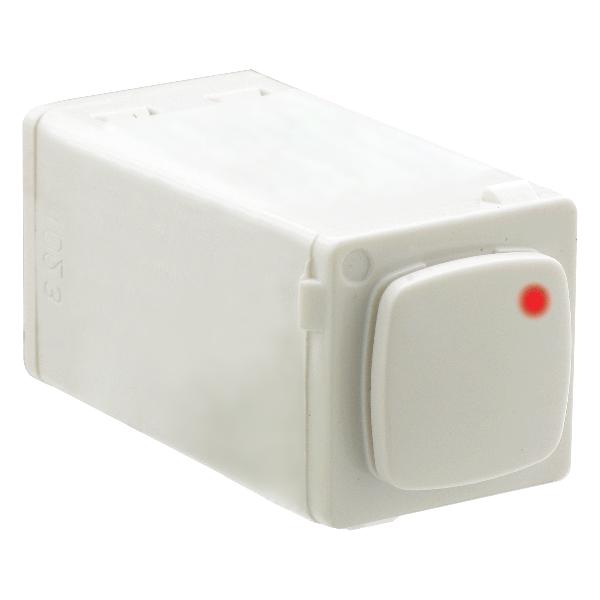

Push Button Dimmer 400VA | 3 Wire | Programmable LED | White by Legrand
Push button dimmer with 400VA capacity and 3 wire setup—ideal for residential and commercial lighting control. Built for versatility, with programmable LED indicators and memory function.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Push Button Dimmer 400VA | 3 Wire | Programmable LED | White by Legrand
Brand: Legrand
SKU: AR400A3PMWE
Alternatively Known As: Push Button Dimmer Switch, 3 Wire Dimmer, 400VA Dimmer Mechanism, Legrand Dimmer, Arteor Dimmer Switch
Technical Specifications
- Voltage: 240V a.c.
- Load Capacity: 400VA
- Wiring: 3 wire
- Compatible Light Sources: Dimmable LEDs, incandescent, halogen, dimmable compact fluorescents
- Programmable LED indicator colors: Blue or Red
- Soft-start mode and Max/Min light levels programmable
- Memory function for dimming level
- Short circuit protection included
- KickStart mode for modern light sources
- Non-volatile memory for program parameters
- Dimensions (H x L x W): 162mm x 83mm x 126mm
- Weight: 0.1 kg
Key Features
- 400VA, 3 wire dimmer suitable for all load types
- Multi-way dimming option with AR450SLAVEWE
- Programmable LED indicator (Blue or Red)
- Programmable soft-start mode and Max/Min light levels
- Dimming level memory function
- Short circuit protection
- KickStart mode suitable for modern light sources
- Program parameters stored in non-volatile memory
- Short button press toggles ON/OFF with last brightness memory
- Long button press adjusts brightness up or down
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper multi-way dimming setup.
Applications
- Residential lighting control
- Commercial lighting ambiance adjustment
- Compatible with dimmable LEDs, incandescent, halogen, and dimmable compact fluorescents
Standards & Compliance
- Complies with AS/NZS 3100 – Electrical Equipment Safety
Environmental Benefits
- Supports energy saving by enabling precise light dimming to reduce power consumption
- Compatible with energy-efficient dimmable LEDs and compact fluorescents
Warranty Information
1 Year Warranty
Available Now
The Legrand Arteor 770 Series Push Button Dimmer Mechanism is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
