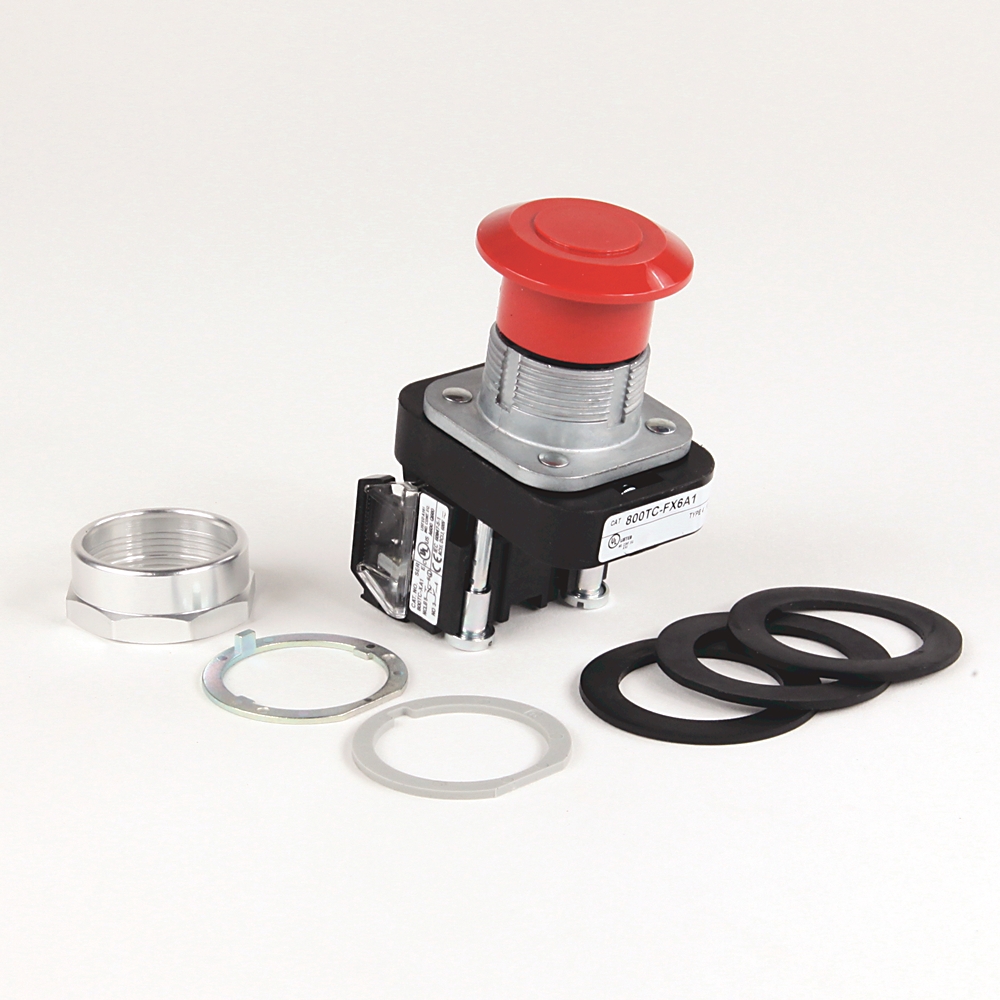

Push Button Finger Safe 30.5mm 3P 120V 1NC 1NO Allen-Bradley

BRAND: Allen-Bradley
SKU: 800TCFXMP16GA1
$422.90 List price: $527.00
+ −
30 Days Return Electricians Unlock Trade Access
Allen-Bradley push button finger-safe featuring 30.5mm, 3P, 120V, 1NC and mushroom. Ideal for machine start, stop and reset control.
Technical Specifications
  • Button Diameter: 30.5 mm
  • Operation: 3-position push-pull (momentary-maintained-maintained)
  • Illumination: Incandescent transformer, 120V AC 50/60 Hz
  • Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
  • Terminal Guards: Type 4/13 for enhanced safety
  • Material: Metal housing
  • Dimensions (H x L x W): 35mm x 50mm x 35mm
  • Weight: 0.2 kg
Key Features
  • 30.5 mm mushroom head push-pull button
  • 3-position: momentary-maintained-maintained
  • Illuminated with incandescent transformer (120V AC 50/60 Hz)
  • Metal construction with Type 4/13 guards on terminals
  • Standard configuration: 1 NO 1 NC contact
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
  • Industrial control panels
  • Machinery operation interfaces
  • Automation systems requiring push-pull control
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable metal construction reduces replacement frequency and waste
  • Long-lasting incandescent transformer reduces energy consumption over time
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 800TCFXMP16GA1 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control panel applications.
