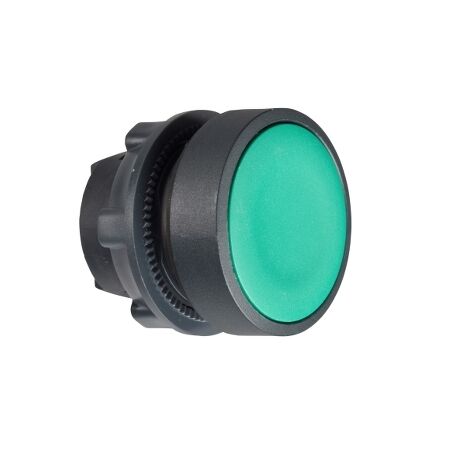

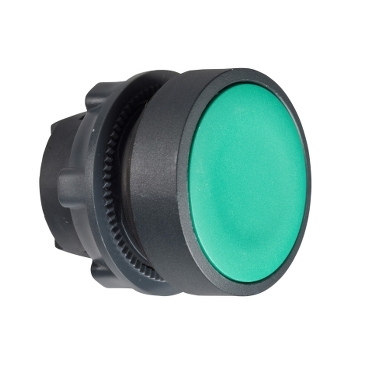

Push Button Green | 22mm Diameter | IP66 & IP69K Rated | Momentary Operation | by Clipsal
The Push Button Green is designed for non-illuminated applications, featuring a 22mm diameter and a robust plastic construction. With a spring return mechanism for momentary operation, it's perfect for industrial control panels and automation systems. Built to last with a mechanical durability of 10 million cycles, this button is ideal for commercial electrical panels and machinery start/stop stations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Push Button Green | 22mm Diameter | IP66 & IP69K Rated | Momentary Operation | by Clipsal
Brand: Clipsal
SKU: SCHZB5AH03
Alternatively Known As: Green push button, Harmony XB5 push button, Clipsal SCHZB5AH03, 22mm push button, non-illuminated push button, momentary push button
Technical Specifications
- Actuator type: Flush push button head
- Colour: Green
- Mounting diameter: 22mm
- Operation: Spring return (momentary)
- Material: Plastic
- Marking: Unmarked
- Degree of protection: IP66, IP69, IP69K
- Mechanical durability: 10,000,000 cycles
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 29mm x 40mm x 29mm
- Weight: 0.1 kg
Key Features
- Green flush push button head for non-illuminated applications
- 22mm diameter mounting
- Spring return mechanism for momentary operation
- Unmarked actuator for versatile use
- Robust plastic construction for durability
- Easy installation and maintenance
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure compliance with safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Manufacturing equipment
- Commercial electrical panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long-lasting design reduces replacement frequency and waste
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Green Push Button Head SCHZB5AH03 is available for immediate purchase. Ideal for industrial and commercial control panel applications.
