Push Button Head 22mm | Spring Return | Green Flush Design by Clipsal
Push button head with 22mm diameter and spring return—ideal for industrial control panels. Built for durability, with IP69K rating and green flush design for high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

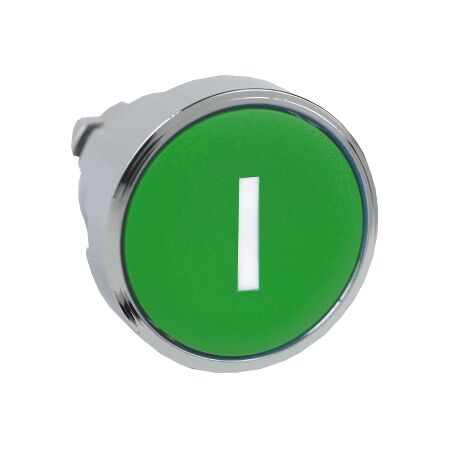

Product Name/Title: Harmony XB4, push-button head, metal, flush, green, 22mm, spring return, marked I
Brand: Clipsal
SKU: ZB4BA331
Alternatively Known As: Harmony XB4 Push Button, Green Push Button Head, Industrial Push Button Switch
Technical Specifications
- Type: Head for non-illuminated push-button
- Bezel Material: Chromium plated metal
- Marking: I
- Vibration Resistance: 5 gn (f= 2-500 Hz)
- Shock Resistance: 30 gn (duration = 18 ms)
- Overvoltage Category: Class I conforming to IEC 60536
- NEMA Degree of Protection: NEMA 13, NEMA 4X
- Dimensions (H x L x W): 29mm x 29mm x 22.5mm
- Weight: 0.029 kg
Key Features
- IP66, IP67, IP69, and IP69K rated for high protection against dust and water.
- Mechanical durability of 10,000,000 cycles.
- Spring return operator with a green flush design.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment.
Standards & Compliance
- Complies with UL 508, IEC 60947-5-5, and other relevant standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Push-Button Head in green is available now for immediate purchase. Ideal for industrial control applications.
