Trade Discount 33%

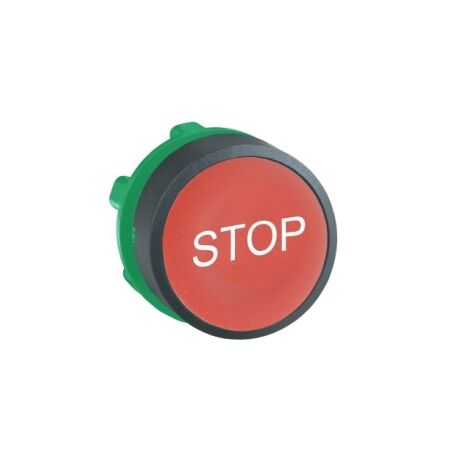

Push Button Head 22mm | Spring Return | IP66 Rated | Red by Clipsal
Push button head with 22mm diameter and spring return—ideal for industrial control panels. Built for durability, with IP66 rating and marked STOP for clear signaling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB5, push-button head, plastic, flush, red, 22mm, spring return, marked STOP
Brand: Clipsal
SKU: ZB5AA434
Alternatively Known As: Harmony XB5 Push Button, Red Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Marking: STOP
- Bezel Material: Dark grey plastic
- Mounting Diameter: 22 mm
- Shape: Round
- Overvoltage Category: Class II conforming to IEC 60536
- NEMA Degree of Protection: NEMA 13, NEMA 4X
- Resistance to High Pressure Washer: 7000000 Pa at 55 °C
- Shock Resistance: 30 gn for half sine wave acceleration
- Vibration Resistance: 5 gn (f= 2-500 Hz)
- Dimensions (H x L x W): 29mm x 29mm x 22mm
- Weight: 0.018 kg
Key Features
- Spring return mechanism for quick reset.
- IP66 rated for protection against dust and water.
- Mechanical durability of 10 million cycles.
- Marked STOP for clear signaling.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and equipment
Standards & Compliance
- Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
