Push Button Head 22mm | Spring Return | IP69K Rated | Black by Clipsal
Push button head with 22mm diameter and spring return mechanism—ideal for industrial control panels. Built for durability, with IP69K rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

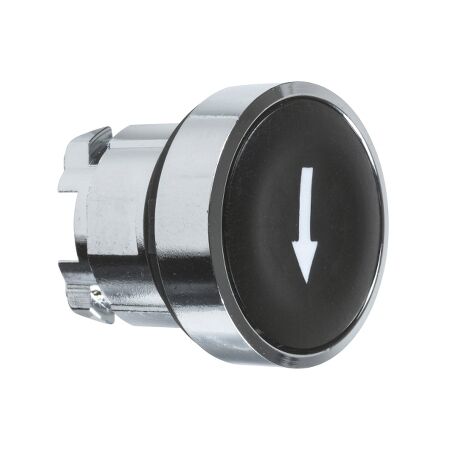

Product Name/Title: Harmony XB4, push-button head, metal, flush, black, 22mm, spring return, marked DOWN ARROW
Brand: Clipsal
SKU: ZB4BA335
Alternatively Known As: Harmony XB4 Push Button, XB4 Push Button Head, Clipsal Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Bezel Material: Chromium plated metal
- Mounting Diameter: 22.5 mm
- Shape: Round
- Overvoltage Category: Class I conforming to IEC 60536
- Vibration Resistance: 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Shock Resistance: 30 gn (duration = 18 ms) conforming to IEC 60068-2-27
- Dimensions (H x L x W): 29mm x 28mm x 29mm
- Weight: 0.028 kg
Key Features
- Spring return mechanism for reliable operation.
- IP66, IP67, IP69, and IP69K rated for protection against dust and water.
- Mechanical durability of 10,000,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment.
Standards & Compliance
- Complies with IEC 60947-5-4 and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
