Push Button Head 22mm | Spring Return | IP69K Rated | Black by Clipsal
Push button head with 22mm mounting diameter and spring return mechanism—ideal for industrial control panels. Built for durability, with IP69K rating for high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

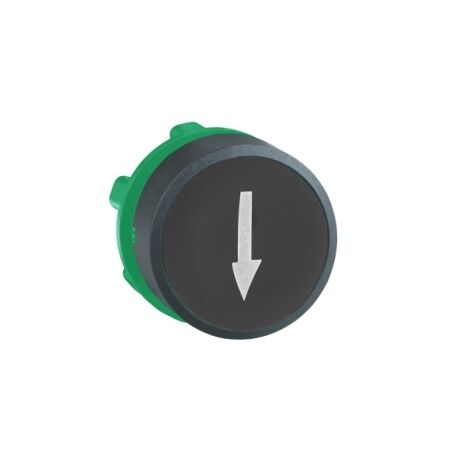

Product Name/Title: Harmony XB5, push-button head, plastic, flush, black, 22mm, spring return, marked DOWN ARROW
Brand: Clipsal
SKU: ZB5AA335
Alternatively Known As: Harmony XB5 Push Button, XB5 Push Button Head, Clipsal Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Marking: Down arrow
- Bezel Material: Dark grey plastic
- Mounting Diameter: 22 mm
- Shape: Round
- Overvoltage Category: Class II conforming to IEC 60536
- NEMA Degree of Protection: NEMA 13, NEMA 4X
- Resistance to High Pressure Washer: 7000000 Pa at 55 °C
- Shock Resistance: 30 gn for half sine wave acceleration
- Vibration Resistance: 5 gn (f= 2-500 Hz)
- Dimensions (H x L x W): 29mm x 29mm x 22mm
- Weight: 0.018 kg
Key Features
- Spring return mechanism for quick reset.
- IP66, IP67, IP69, and IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment.
Standards & Compliance
- Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
