Trade Discount 33%
Push Button Head 22mm | Spring Return | IP69K Rated | Green by Clipsal
Push button head with 22mm diameter and spring return—ideal for industrial control panels. Built for durability, with IP69K rating for high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

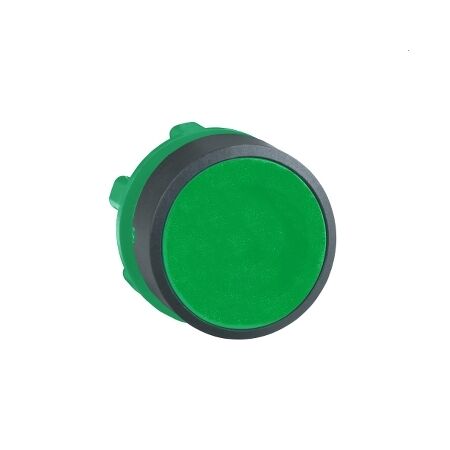

Product Name/Title: Harmony XB5, push-button head, plastic, flush, green, 22mm, spring return, unmarked
Brand: Clipsal
SKU: ZB5AA3
Alternatively Known As: Harmony XB5 Push Button, Green Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Mounting diameter: 22 mm
- Shape: Round
- Overvoltage category: Class II conforming to IEC 60536
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Shock resistance: 30 gn for half sine wave acceleration
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Dimensions (H x L x W): 29mm x 29mm x 22mm
- Weight: 0.018 kg
Key Features
- IP66, IP67, IP69, and IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
- Spring return operator for reliable performance.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and equipment
Standards & Compliance
- Complies with UL 508, IEC 60947-1, IEC 60947-5-1
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Push-Button Head in green is available now for immediate purchase. Ideal for industrial control applications.
