Push Button Head 22mm | Spring Return | IP69K Rated | Yellow by Clipsal
Push button head with 22mm diameter and spring return mechanism—ideal for industrial control panels. Built for durability, with IP69K rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

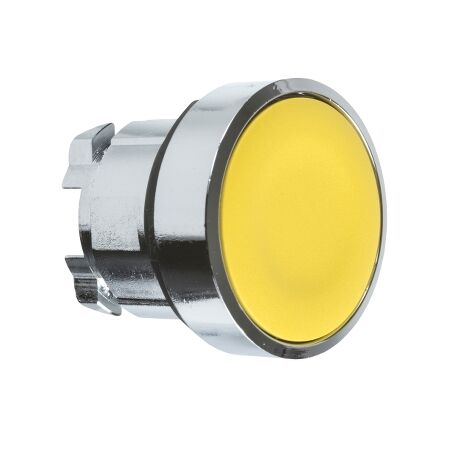

Product Name/Title: Harmony XB4, push-button head, metal, flush, yellow, 22mm, spring return, unmarked
Brand: Clipsal
SKU: ZB4BA5
Alternatively Known As: Harmony XB4 Push Button, Yellow Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Bezel Material: Chromium plated metal
- Mounting Diameter: 22.5 mm
- Shape: Round
- Overvoltage Category: Class I conforming to IEC 60536
- Vibration Resistance: 5 gn (f= 2-500 Hz)
- Shock Resistance: 30 gn (duration = 18 ms)
- Dimensions (H x L x W): 29mm x 29mm x 22.5mm
- Weight: 0.03 kg
Key Features
- Spring return mechanism for reliable operation.
- Mechanical durability of 10,000,000 cycles.
- IP66, IP67, IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, automation systems
Standards & Compliance
- Complies with UL 508, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-5-1
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Push-Button Head in yellow is available now for immediate purchase. Ideal for industrial control applications.
