Push Button Head 22mm | Spring Return | Marked STOP | Red by Clipsal
Push button head with 22mm diameter and spring return—ideal for industrial control panels. Built for durability, with IP69K rating and clear STOP marking for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

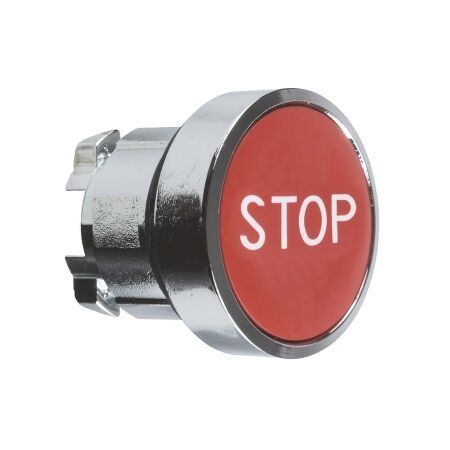

Product Name/Title: Harmony XB4, push-button head, metal, flush, red, 22mm, spring return, marked STOP
Brand: Clipsal
SKU: ZB4BA434
Alternatively Known As: Harmony XB4 Push Button, Red Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Marking: STOP
- Mounting diameter: 22.5 mm
- Bezel material: Chromium plated metal
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Overvoltage category: Class I conforming to IEC 60536
- Dimensions (H x L x W): 29mm x 28mm x 29mm
- Weight: 0.028 kg
Key Features
- Spring return mechanism for quick reset.
- IP66, IP67, IP69, and IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
- Marked STOP for clear signaling.
Professional Installation Requirements
- Professional installation is recommended for optimal functionality.
Applications
- Industrial: Control panels, machinery, and equipment
Standards & Compliance
- Complies with IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
