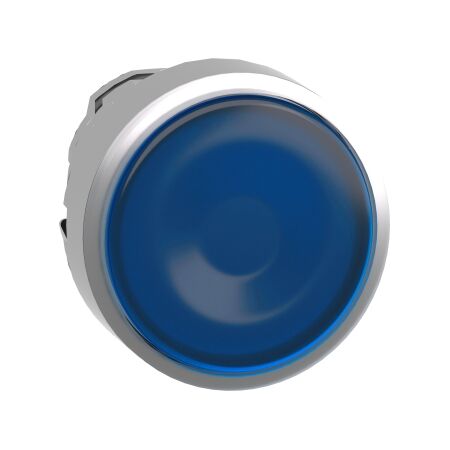

Push Button Illuminated Blue | LED Illumination | 22mm Mounting | Momentary Action | @Pack of 1 | by Clipsal
The Push Button Illuminated Blue is designed for clear visual indication in industrial settings, featuring a robust 22mm diameter and momentary action. Ideal for control panels and automation systems, this LED-illuminated button ensures reliable operation and easy installation, making it perfect for machinery operation stations and electrical switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Push Button Illuminated Blue | LED Illumination | 22mm Mounting | Momentary Action | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BH063
Alternatively Known As: Illuminated push button, Blue indicator push button, Clipsal 22mm illuminated switch, Industrial control button, SCHZB4BH063
Technical Specifications
- Actuator colour: Blue
- Illumination: LED
- Mounting diameter: 22mm
- Action: Momentary
- Rated voltage: 24V AC/DC
- Front ring material: Plastic
- IP rating: IP66 (front face)
- Terminal type: Screw clamp
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Illuminated blue actuator for clear visual indication
- 22mm diameter mounting
- Momentary action push button
- Robust construction for industrial use
- Easy installation and replacement
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct wiring.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical switchboards
- Commercial and manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LED illumination offers energy efficiency and long operational life.
- Durable design reduces replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHZB4BH063 Push Button Illuminated Blue is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation stations.
