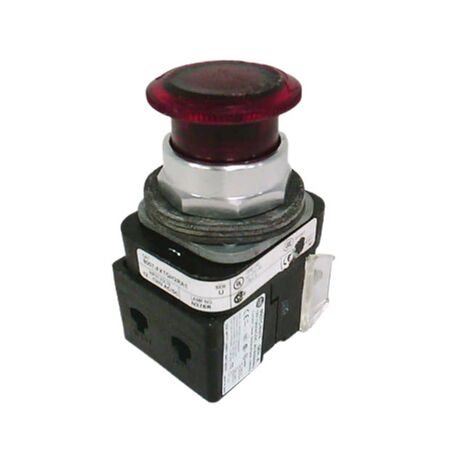

Push Button Switch Allen-Bradley 800TFXTQH2RA1 | 12-130 VAC/DC | Red Mushroom Cap | LED Indicator | by Allen-Bradley
The Allen-Bradley 800TFXTQH2RA1 Push Button Switch is designed for industrial control applications, featuring a versatile 12-130 VAC/DC operating voltage and a standard 30 mm red mushroom cap. With a push-pull design and twist release mechanism, it ensures reliable operation for machinery and emergency controls, making it ideal for manufacturing automation and control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating Voltage: 12-130 VAC/DC
- Contact Configuration: 1 NCLB (Normally Closed Locking Button), 1 NO (Normally Open)
- Cap Size: 30 mm standard mushroom
- Device Type: Push-pull with twist release
- Terminal Guards: None
- Lamp Type: LED
- No block in position 3
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- 2 position push-pull device with twist release
- Standard mushroom cap in red color
- No legend on cap for customizable labeling
- No guards on terminals for easy wiring
- Full voltage type operation
- Includes LED lamp for status indication
- 1 NCLB and 1 NO standard contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Industrial control panels
- Machinery operation
- Manufacturing automation
- Emergency stop and start controls
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- LED lamp reduces energy consumption compared to incandescent indicators
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXTQH2RA1 Push Button Switch is available for immediate purchase, ideal for industrial and manufacturing control applications.
