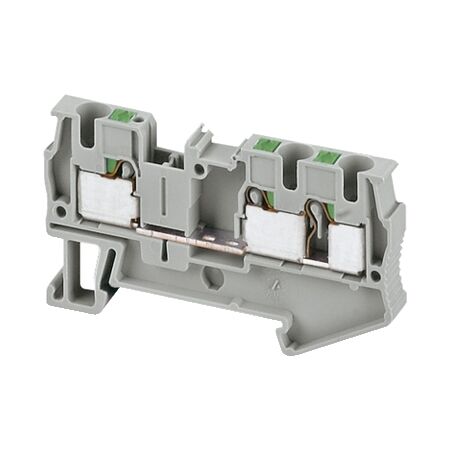

Push-In Terminal Block 3 Points | 800V 32A | 4mm² Grey by Clipsal
Push-in terminal block with 3 points and 4mm² capacity—ideal for industrial electrical enclosures. Built for easy installation, with 800V and 32A ratings for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linergy, Terminal block, Linergy TR, push-in type, feed through, 3 points, 4mm², grey, set of 50
Brand: Clipsal
SKU: NSYTRP43
Alternatively Known As: Push-in Terminal Block, Feed Through Terminal Block, Linergy TR Terminal Block
Technical Specifications
- Rated operational voltage: 800 V
- Rated current: 32 A
- Nominal cross section: 4 mm²
- Material: Polyamide 6/6 insulating case, copper alloy connectors
- Dielectric strength: 1000 V
- Flame retardance: V0, thickness 0.8 mm conforming to UL 94
- Ambient air temperature for operation: -40...130 °C
- Dimensions (H x L x W): 36.5mm x 66.5mm x 62mm
- Weight: 0.556 kg
Key Features
- Push-in type connections for easy installation.
- Feed through design with 3 points for efficient wiring.
- Rated operational voltage of 800 V and current of 32 A.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and performance.
Applications
- Industrial: Suitable for use in various electrical enclosures and panels.
Standards & Compliance
- Complies with EN/IEC 60947 for safety and performance standards.
Environmental Benefits
- Halogen free plastic parts contribute to safer disposal.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy TR Terminal Block is available now for immediate purchase. Ideal for industrial applications requiring reliable electrical connections.
