Home/Electrical Supplies/Clipsal Industrial/Schneider Automation & Control/Terminal Blocks/Push-In Terminal Block 4 Points | 4mm² | Grey by Clipsal

Trade Discount 19%

Linergy, Terminal block, Linergy TR, push-in type, feed through, 4 points, 4mm², grey, set of 50

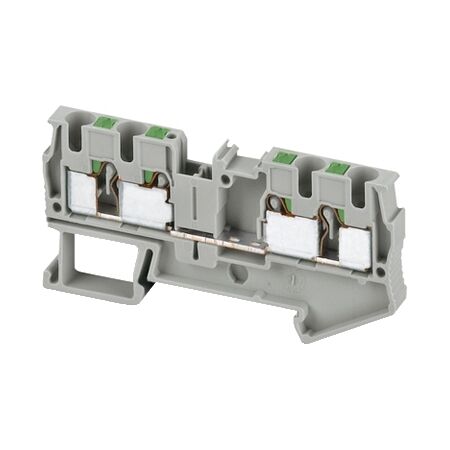

Push-In Terminal Block 4 Points | 4mm² | Grey by Clipsal

BRAND: Clipsal

SKU: NSYTRP44

$3.90 List price: $4.80

+ −

30 Days Return Delivery Options

Push-in terminal block with 4 points and 4mm² capacity—ideal for industrial electrical installations. Built for easy installation, with compatibility for PrismaSeT enclosures and rated for 800 V and 32 A.

Description
Attachments

Product Name/Title: Linergy, Terminal block, Linergy TR, push-in type, feed through, 4 points, 4mm², grey, set of 50

Brand: Clipsal

SKU: NSYTRP44

Alternatively Known As: Push-in Terminal Block, Feed Through Terminal Block, Linergy TR Terminal Block

Technical Specifications

Terminal block type: passthrough
Nominal cross section: 4 mm²
Connections: 2 x push-in downstream, 2 x push-in upstream
Wire stripping length: 12 mm
Dielectric strength: 1000 V conforming to IEC 60243-1
Flame retardance: V0, thickness 0.8 mm conforming to UL 94
Ambient air temperature for operation: -40...130 °C
Dimensions (H x L x W): 36.5mm x 77mm x 6.2mm
Weight: 0.1 kg

Key Features

Push-in type connections for easy installation.
Rated operational voltage of 800 V and current of 32 A.
Compatible with various PrismaSeT enclosures.

Professional Installation Requirements

Professional installation is recommended for optimal safety and performance.

Applications

Industrial: Suitable for use in various electrical installations and enclosures.

Standards & Compliance

Conforms to EN/IEC 60947-7 for safety and performance standards.

Environmental Benefits

Green Premium product with halogen-free plastic parts.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy TR Terminal Block is available now for immediate purchase. Ideal for industrial electrical installations.

NSYTRP44 (NSYTRP44, 254 Kb) [Download]
