Trade Discount 19%

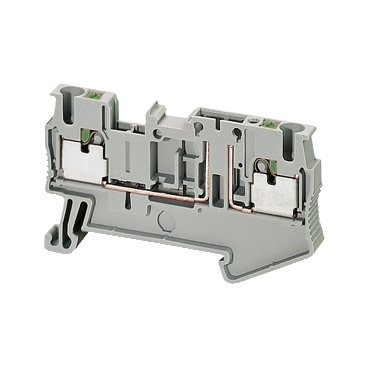

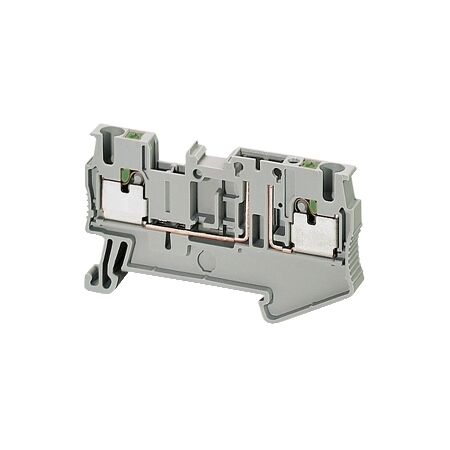

Push-In Terminal Block | Basic Disconnect | 2 Connection Points | Up to 2.5mm² | Grey | @Each of 1 | by Clipsal
The Push-In Terminal Block is designed for fast and tool-free wiring, featuring a basic disconnect function for circuit isolation and testing. With 2 connection points and support for conductor sizes up to 2.5mm², this terminal block is perfect for industrial control panels and general electrical installations, ensuring safe and reliable wire termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Push-In Terminal Block | Basic Disconnect | 2 Connection Points | Up to 2.5mm² | Grey | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRP22TB
Alternatively Known As: Push-In Terminal Block, Disconnect Terminal Block, Linergy TR Terminal, 2.5mm² Terminal Block, Clipsal Terminal Block
Technical Specifications
- Type: Basic disconnect terminal block
- Connection: Push-in type
- Number of connection points: 2
- Conductor size: Up to 2.5mm²
- Color: Grey
- Material: Polyamide housing
- Rated voltage: 800V
- Rated current: 24A
- Mounting: DIN rail
- Dimensions (H x L x W): 45mm x 45mm x 5mm
- Weight: 0.1 kg
Key Features
- Push-in connection technology for fast and tool-free wiring
- Basic disconnect terminal for circuit isolation and testing
- 2 connection points for flexible wiring
- Supports conductor size up to 2.5mm²
- Compact and robust design
- Grey color for easy circuit identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with Australian standards and safe operation.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Building management systems
- General electrical installations requiring safe and reliable wire termination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Tool-free push-in technology reduces installation time and energy use
- Durable materials ensure long service life, minimizing replacement waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy TR Push-In Basic Disconnect Terminal Block is available for immediate purchase. Ideal for industrial, commercial, and general electrical installations requiring reliable and efficient wire termination.
