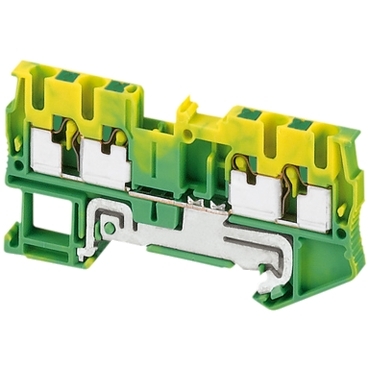

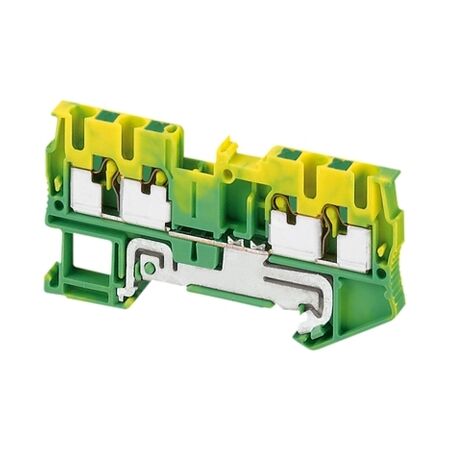

PUSH-IN Terminal Block | Protective Earth | 4 Connection Points | Green-Yellow Color | by Clipsal
The PUSH-IN Terminal Block is designed for protective earth applications, featuring push-in connection technology for fast, tool-free wiring. With 4 connection points and compatibility for conductors up to 2.5mm², it's perfect for electrical distribution panels and industrial control systems. Built for reliability, this terminal block ensures secure connections and compliance with Australian electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PUSH-IN Terminal Block | Protective Earth | 4 Connection Points | Green-Yellow Color | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRP24PE
Alternatively Known As: Push-in earth terminal block, Linergy TR PE terminal, Clipsal earth terminal, 2.5mm² push-in terminal, SCHNSYTRP24PE
Technical Specifications
- Type: Push-in terminal block
- Function: Protective earth (PE)
- Number of connection points: 4
- Conductor size: Up to 2.5mm²
- Color: Green-yellow
- Mounting: DIN rail
- Material: Polyamide housing
- Rated voltage: 500V
- Rated current: 24A
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 36mm x 46mm x 5mm
- Weight: 0.1 kg
Key Features
- Push-in connection technology for fast, tool-free wiring
- Protective earth (PE) terminal block
- Accommodates up to 2.5mm² conductors
- 4 connection points
- Green-yellow color coding for earth identification
- High reliability and secure connections
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with Australian electrical standards.
Applications
- Electrical distribution panels
- Industrial control panels
- Commercial and residential wiring systems
- Switchboards and enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Tool-free push-in technology reduces installation time and energy use.
- Durable materials ensure long service life, minimizing replacement waste.
- Supports safe and efficient electrical connections, reducing risk of faults.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy TR PUSH-IN Terminal Block Protective Earth SCHNSYTRP24PE is available for immediate purchase. Ideal for use in electrical distribution panels, control panels, and switchboards.
