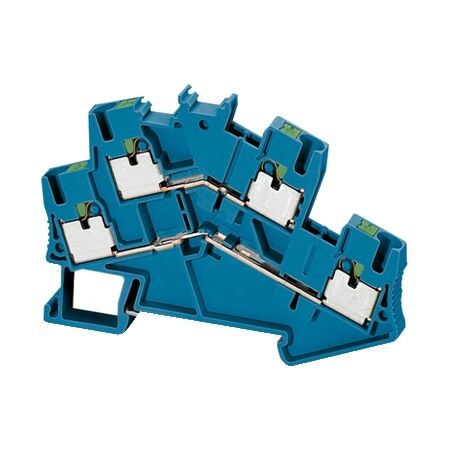

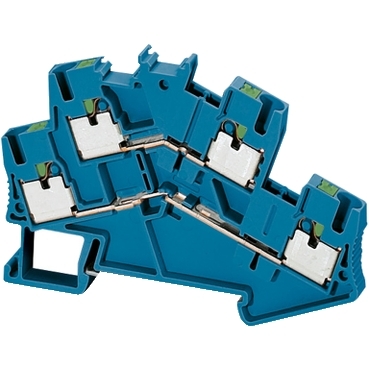

PUSH-IN Terminal Double Level | 2.5mm² Conductor Size | 4 Connection Points | Blue Color | @Each of 1 | by Clipsal
The PUSH-IN Terminal Double Level is designed for efficient wiring with its push-in connection technology, allowing for fast, tool-free installation. Ideal for industrial control panels and automation systems, this terminal block supports conductor sizes up to 2.5mm² and features a compact design with four connection points, making it perfect for space-saving applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PUSH-IN Terminal Double Level | 2.5mm² Conductor Size | 4 Connection Points | Blue Color | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRP24DBL
Alternatively Known As: Double Level Terminal Block, Push-In Terminal Block, Linergy TR Terminal, 2.5mm² Terminal Block, Blue Terminal Block
Technical Specifications
- Type: Double level push-in terminal block
- Series: Linergy TR
- Connection type: Push-in
- Number of levels: 2
- Number of connection points: 4
- Conductor size: Up to 2.5mm²
- Color: Blue
- Rated voltage: 800V
- Rated current: 24A
- Material: Polyamide housing
- Mounting: DIN rail
- Dimensions (H x L x W): 56mm x 62mm x 5mm
- Weight: 0.1 kg
Key Features
- Double level terminal block for space-saving wiring
- Push-in connection technology for fast, tool-free wiring
- Feed-through design with 4 connection points
- Supports conductor size up to 2.5mm²
- Color coded blue for easy circuit identification
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with Australian standards and optimal safety.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Building management systems
- Switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces installation time and material waste with tool-free push-in technology
- Compact design minimizes panel space usage, supporting efficient resource use
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy TR Double Level Push-In Terminal Block (2.5mm², Blue) is available for immediate purchase. Ideal for industrial control panels, switchboards, and automation systems.
