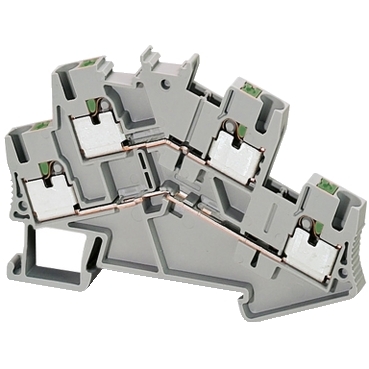

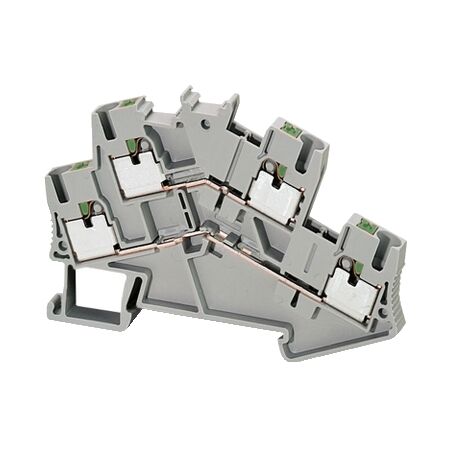

PUSH-IN Terminal Double Level | 2.5mm² Conductor Size | 4 Connection Points | Tool-Free Installation | @Each of 1 | by Clipsal
The PUSH-IN Terminal Double Level is designed for efficient wiring in industrial control panels and automation systems. With a tool-free push-in connection and support for conductor sizes up to 2.5mm², this terminal block ensures quick and reliable installations. Its grey color aids in circuit identification, making it ideal for electrical distribution boards and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PUSH-IN Terminal Double Level | 2.5mm² Conductor Size | 4 Connection Points | Tool-Free Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRP24D
Alternatively Known As: Double Level Terminal Block, Push-In Terminal Block, Linergy TR Terminal, 2.5mm² Terminal Block, SCHNSYTRP24D
Technical Specifications
- Type: Double level push-in terminal block
- Series: Linergy TR
- Connection type: Push-in
- Feed-through: Yes
- Number of levels: 2
- Number of connection points: 4
- Conductor size: Up to 2.5mm²
- Color: Grey
- Rated voltage: 800V
- Rated current: 24A
- Mounting: DIN rail
- Dimensions (H x L x W): 56mm x 62mm x 5mm
- Weight: 0.1 kg
Key Features
- Double level push-in terminal block for space-saving wiring
- Feed-through design with 4 connection points
- Supports conductor size up to 2.5mm²
- Tool-free push-in connection for fast installation
- Grey color for easy circuit identification
- Reliable and vibration-resistant connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Building management systems
- Switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Tool-free installation reduces material waste and installation time.
- Durable design ensures long service life, minimizing replacement frequency.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy TR Double Level Push-In Terminal Block SCHNSYTRP24D is available for immediate purchase. Ideal for industrial control panels, switchboards, and automation systems.
