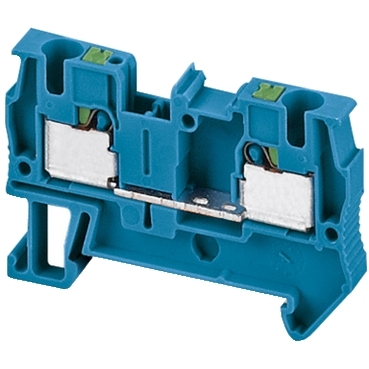

PUSH-IN Terminal Feed Through | Tool-Free Connection | Compact Design | 800V Rated | @Each of 1 | by Clipsal
The PUSH-IN Terminal Feed Through is designed for quick and secure wiring with its tool-free connection feature. Ideal for electrical distribution boards and control panels, this compact terminal block supports conductor sizes from 0.2 to 4 mm² and is rated for 800V and 32A. Built with flame-retardant polyamide, it ensures reliable performance and compliance with Australian standards, making it perfect for both commercial and residential applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PUSH-IN Terminal Feed Through | Tool-Free Connection | Compact Design | 800V Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRP42BL
Alternatively Known As: Push-in terminal block, feed through terminal, Clipsal terminal connector, electrical terminal block, SCHNSYTRP42BL
Technical Specifications
- Connection type: PUSH-IN
- Function: Feed through terminal
- Conductor size: 0.2–4 mm² (solid/stranded)
- Rated voltage: 800V
- Rated current: 32A
- Housing material: Polyamide (PA66), flame retardant
- Mounting: DIN rail
- Color: Blue
- Dimensions (H x L x W): 42mm x 42mm x 6mm
- Weight: 0.1 kg
Key Features
- Tool-free PUSH-IN connection for fast and secure wiring
- Feed through design for easy circuit extension
- Compact size for space-saving installation
- Reliable electrical contact with vibration resistance
- Suitable for solid and stranded conductors
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
- Electrical distribution boards
- Industrial control panels
- Commercial and residential wiring systems
- Switchboards and enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces installation time and waste by eliminating the need for additional tools or consumables.
- Reusable and durable design minimizes replacement frequency.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal PUSH-IN Terminal Feed Through SCHNSYTRP42BL is available for immediate purchase. Ideal for use in electrical panels, switchboards, and control systems.
