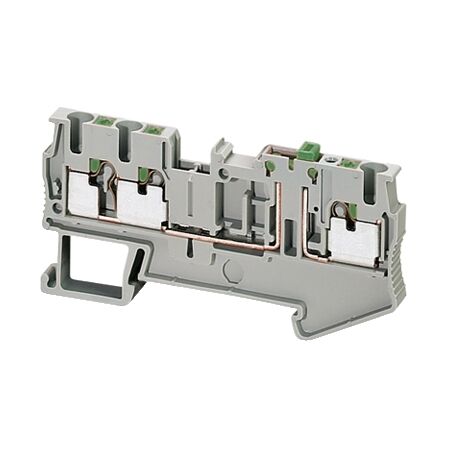

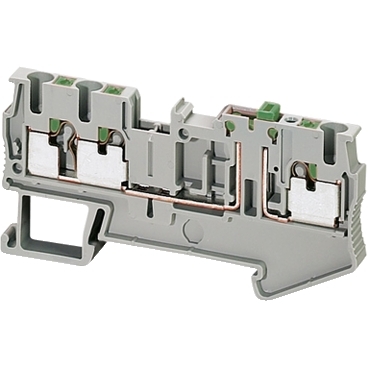

PUSH-IN Terminal Knife Disconnect | 800V Rated | Tool-Free Wiring | Compact Design | @Each of 1 | by GAF
The PUSH-IN Terminal Knife Disconnect is designed for fast, tool-free wiring with an 800V rated voltage and a knife disconnect function for easy circuit isolation. Ideal for electrical control panels and industrial automation systems, this compact terminal block ensures reliable wire retention and is suitable for both solid and stranded conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PUSH-IN Terminal Knife Disconnect | 800V Rated | Tool-Free Wiring | Compact Design | @Each of 1 | by GAF
Brand: GAF
SKU: SCHNSYTRP23SC
Alternatively Known As: Knife Disconnect Terminal Block, Push-In Disconnect Terminal, Knife Disconnect Block, Push-In Terminal Block
Technical Specifications
- Connection type: PUSH-IN technology
- Disconnect type: Knife disconnect
- Rated voltage: 800V
- Rated current: 24A
- Wire size: 0.2–4 mm² (solid/stranded)
- Housing material: Polyamide (PA66), flame retardant
- Mounting: DIN rail
- Operating temperature: -40°C to +105°C
- Dimensions (H x L x W): 45mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- PUSH-IN connection technology for fast, tool-free wiring
- Knife disconnect function for easy circuit isolation and testing
- Compact design for space-saving installation
- Reliable and secure wire retention
- Suitable for solid and stranded conductors
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Electrical control panels
- Industrial automation systems
- Switchboards
- Distribution boards
- Machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces installation time and waste due to tool-free wiring
- Reusable design supports sustainable electrical installations
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The GAF PUSH-IN Terminal Knife Disconnect SCHNSYTRP23SC is available for immediate purchase. Ideal for industrial control panels, switchboards, and machinery wiring.
