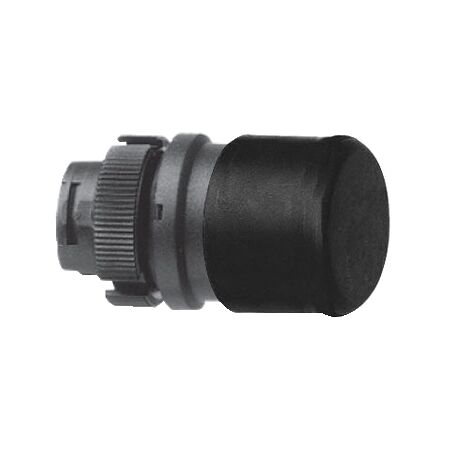

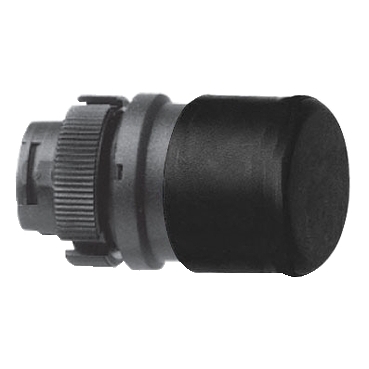

Pushbutton Head | 22mm Diameter | Momentary Action | IP66 Rated | @Pack of 1 | by Clipsal
The Pushbutton Head is a 22mm diameter actuator designed for industrial control panels and automation systems. With a momentary action and robust black construction, it ensures clear identification and reliable performance in demanding environments. Rated IP66 for protection against dust and water, this pushbutton head is perfect for commercial electrical installations and machinery start/stop stations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pushbutton Head | 22mm Diameter | Momentary Action | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZA2BC24
Alternatively Known As: Clipsal push button, industrial pushbutton head, 22mm momentary button, SCHZA2BC24 actuator, Clipsal control button
Technical Specifications
- Actuator type: Pushbutton head
- Action: Momentary (spring return)
- Actuator colour: Black
- Mounting diameter: 22mm
- Material: High-impact plastic
- Ingress protection: IP66 (front face)
- Operating temperature: -25°C to +70°C
- Mechanical endurance: >1,000,000 operations
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- 22mm diameter pushbutton head
- Momentary action (spring return)
- Black actuator for clear identification
- Robust construction for industrial environments
- Easy installation with standard panel cutout
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and waste
- RoHS compliant materials for reduced environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHZA2BC24 Pushbutton Head is available for immediate purchase. Ideal for industrial control panels, automation systems, and commercial electrical installations.
