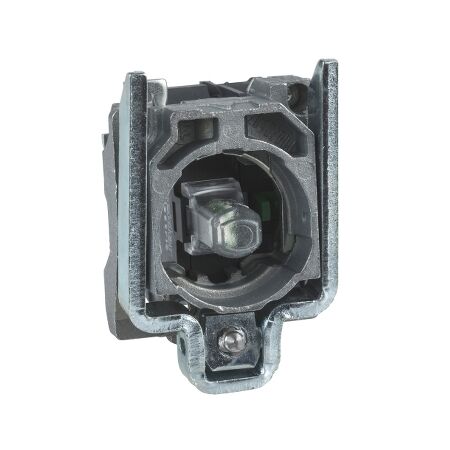

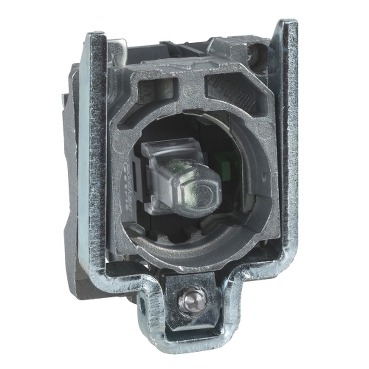

Pushbutton Illuminated 1N/O GN | Green LED Indicator | IP66 Rated | 24V AC/DC | by Clipsal
The Pushbutton Illuminated 1N/O GN is designed for reliable operation in industrial control panels and automation systems. Featuring a vibrant green LED indicator and a robust body for secure panel mounting, this switch ensures clear status visibility. With a rated voltage of 24V AC/DC and an impressive mechanical life of 5,000,000 cycles, it's perfect for machinery start/stop stations and electrical control cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pushbutton Illuminated 1N/O GN | Green LED Indicator | IP66 Rated | 24V AC/DC | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW0B31
Alternatively Known As: illuminated push button, green LED pushbutton, Clipsal 1N/O illuminated switch, SCHZB4BW0B31, 24V green pushbutton
Technical Specifications
- Contact configuration: 1 Normally Open (1N/O)
- Illumination: Green LED
- Rated voltage: 24V AC/DC
- Mounting: Panel mount with fixing collar
- Body material: Durable plastic and metal components
- Ingress protection: IP66 (front face)
- Mechanical life: 5,000,000 cycles
- Electrical life: 1,000,000 cycles
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Illuminated pushbutton with green LED indicator
- 1 Normally Open (1N/O) contact configuration
- 24V integral LED for clear status indication
- Robust body with fixing collar for secure installation
- Suitable for panel mounting
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs.
- Long-life LED minimizes maintenance and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Pushbutton Illuminated 1N/O GN SCHZB4BW0B31 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery applications.
