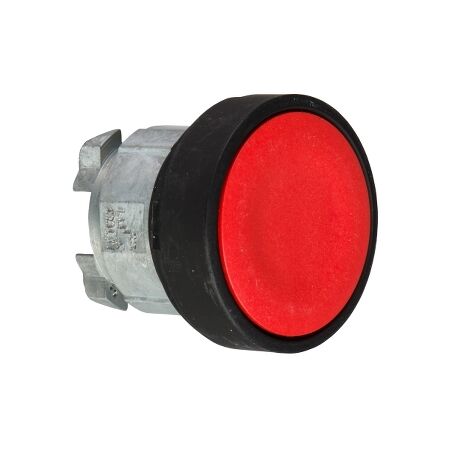

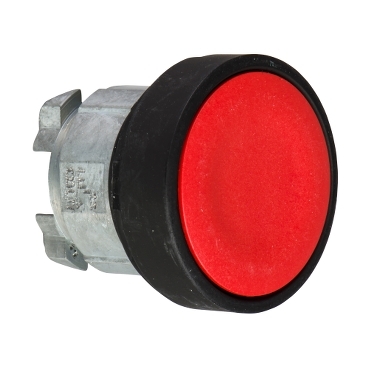

Pushbutton Operator Head | Red Flush Actuator | Spring Return Mechanism | IP66/IP69K Rated | @Each of 1 | by Clipsal
The Pushbutton Operator Head is designed for industrial control applications, featuring a red flush actuator and a spring return mechanism for momentary operation. With an IP66/IP69K rating, it's built to withstand harsh environments, making it ideal for machinery start/stop stations and automation systems. This robust design ensures mechanical durability of up to 10 million cycles, perfect for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pushbutton Operator Head | Red Flush Actuator | Spring Return Mechanism | IP66/IP69K Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB4BA47
Alternatively Known As: Harmony XB4 pushbutton, SCHZB4BA47, Clipsal red pushbutton, industrial pushbutton head, non-illuminated pushbutton
Technical Specifications
- Type: Pushbutton operator head
- Actuator: Red flush, unmarked
- Operation: Spring return (momentary)
- Mounting diameter: 22 mm
- Material: Plastic and metal
- Degree of protection: IP66, IP69, IP69K
- Operating temperature: -40°C to +70°C
- Mechanical durability: 10,000,000 cycles
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Red flush pushbutton head for non-illuminated applications
- Spring return mechanism for momentary operation
- 22 mm diameter mounting
- Unmarked actuator for flexible use
- Robust design suitable for industrial environments
- Part of the Harmony XB4 range
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Manufacturing equipment
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- RoHS compliant materials for reduced environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Red Flush Pushbutton Operator Head SCHZB4BA47 is available for immediate purchase. Ideal for industrial control panels and automation systems.
