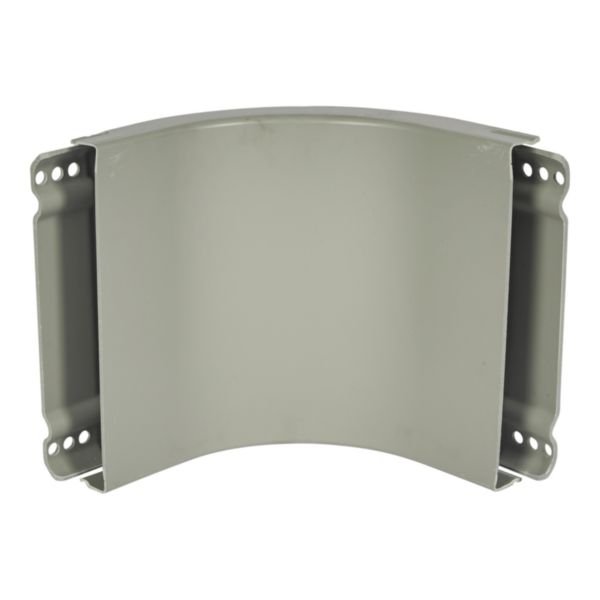

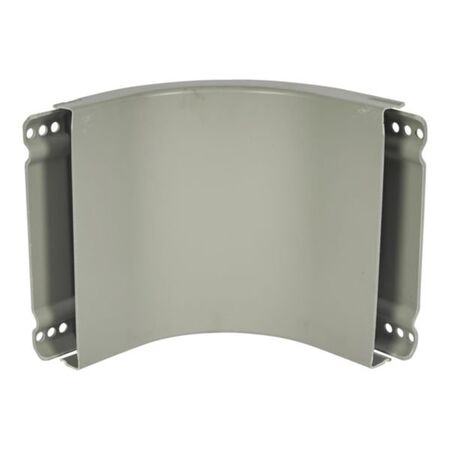

Legrand PVC Cable Tray 90° Inside Riser | Durable PVC Construction | Includes Cover | 300mm x 50mm | @EA of 1 | by Cablofil
The Legrand PVC Cable Tray 90° Inside Riser is designed for efficient cable management, featuring a durable PVC construction and an integrated cover for added protection. Ideal for commercial and industrial applications, this riser allows for vertical cable routing while ensuring compliance with safety standards. With a grey finish (RAL 7030) and a temperature range of -5°C to 60°C, it’s perfect for various electrical wiring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray 90° Inside Riser | Durable PVC Construction | Includes Cover | 300mm x 50mm | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: 637745
Alternatively Known As: PVC Cable Tray Bend, 90 Degree Cable Tray Riser, PVC Cable Tray Elbow, Cable Tray Inside Riser with Cover
Technical Specifications
- Change of direction: Vertically rising 90°
- Construction type: Bend rigid
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 50 mm
- Suitable for cable tray width: 300 mm
- Side perforation: No
- Bottom perforation: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 50mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- 90° vertical inside riser bend for cable trays
- Includes cover for cable protection
- Constructed from durable polyvinyl chloride (PVC)
- Integrated connector model for easy installation
- Suitable for cable trays 300mm wide and 50mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 standard
Professional Installation Requirements
- Installation should be performed by qualified electrical or cable management professionals to ensure compliance with safety standards and proper cable routing.
Applications
- Cable management in commercial and industrial electrical installations
- Vertical cable routing in building infrastructure
- Suitable for use in electrical wiring systems requiring 90° vertical bends
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and resistant to corrosion, extending product life and reducing waste
- Durable construction reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray 90° Inside Riser with Cover 300mm x 50mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
