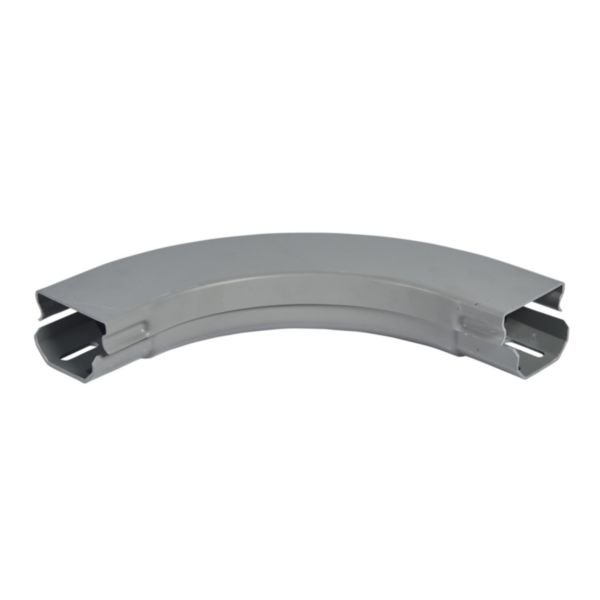

Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @Each of 1 | by Cablofil
The Legrand PVC Cable Tray 90° Flat Bend with Cover is designed for efficient cable management in commercial and industrial settings. This rigid bend allows for horizontal direction changes while protecting cables, making it ideal for installations requiring durability and compliance with electrical standards. Made from high-quality PVC, it operates effectively within a temperature range of -5°C to 60°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Change of direction: Horizontal 90°
- Construction type: Rigid bend with integrated connector
- Material: Polyvinyl chloride (PVC)
- Suitable for cable tray width: 75 mm
- Suitable for cable tray height: 50 mm
- Inner radius: 150 mm
- Operating temperature: -5°C to 60°C
- Colour: Grey (RAL 7030)
- Side and bottom perforation: No
- NATO mounting holes: No
- Halogen free: No
- Dimensions (H x L x W): 50mm x 150mm x 75mm
- Weight: 0.3 kg
Key Features
- 90° horizontal flat bend for cable trays
- Includes cover for cable protection
- Rigid bend construction
- Made from durable polyvinyl chloride (PVC)
- Suitable for cable trays 75mm wide and 50mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030
Professional Installation Requirements
- Installation should be performed by a qualified electrician or cable management professional to ensure compliance with electrical standards and secure cable routing.
Applications
- Cable management in electrical installations
- Routing and protecting cables in commercial and industrial buildings
- Suitable for horizontal cable direction changes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is durable and recyclable, reducing waste
- Helps organize cables efficiently, reducing damage and need for replacements
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Legrand PVC Cable Tray 90° Flat Bend with Cover 75mm x 50mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
