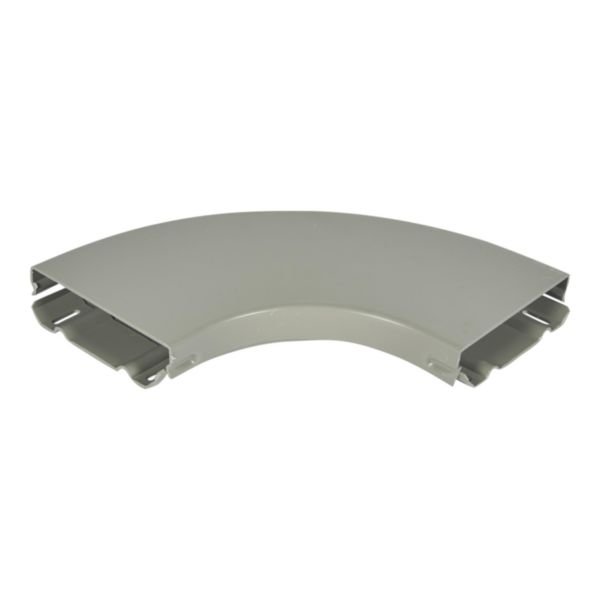

Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @Each of 1 | by Cablofil
The Legrand PVC Cable Tray 90° Flat Bend with Cover is designed for efficient cable management in commercial and industrial settings. This rigid bend features an integrated connector and is made from durable PVC, ensuring reliable performance. Ideal for routing and protecting electrical cables, it accommodates trays 200mm wide and 50mm high, making it perfect for horizontal direction changes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637733
Alternatively Known As: PVC Cable Tray Bend, 90 Degree Cable Tray Elbow, Cable Tray Flat Bend with Cover
Technical Specifications
- Change of direction: Horizontal 90°
- Construction type: Rigid bend with integrated connector
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 50 mm
- Suitable for cable tray width: 200 mm
- Side perforation: No
- Bottom perforation: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 50mm x 200mm x 200mm
- Weight: 0.5 kg
Key Features
- 90° horizontal flat bend for cable tray direction change
- Rigid bend construction with integrated connector
- Includes cover for cable protection
- Made from durable polyvinyl chloride (PVC)
- Suitable for cable trays 200mm wide and 50mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Professional installation by a qualified electrician or cable management specialist is recommended to ensure compliance with electrical standards and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protecting electrical cables in building infrastructure
- Suitable for horizontal cable tray direction changes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is durable and recyclable, reducing environmental impact
- Helps organize cables efficiently, reducing waste and damage
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray 90° Flat Bend with Cover 200mm x 50mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
