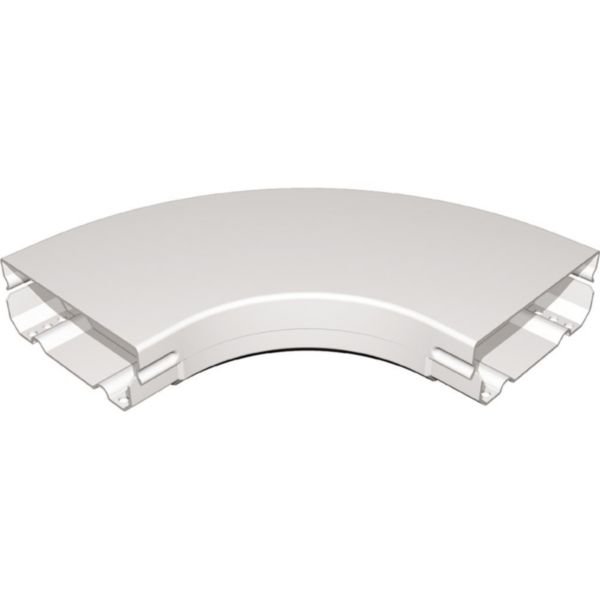

Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @Each of 1 | by Cablofil
The Legrand PVC Cable Tray 90° Flat Bend with Cover is designed for efficient cable management in commercial and industrial settings. This rigid bend allows for horizontal direction changes while protecting cables with its included cover. Made from durable PVC, it operates effectively within a temperature range of -5°C to 60°C, making it ideal for various electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Change of direction: Horizontal 90°
- Construction type: Rigid bend
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 75 mm
- Suitable for cable tray width: 300 mm
- Side perforation: No
- Bottom perforation: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 75mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- 90° horizontal flat bend for cable tray systems
- Includes cover for cable protection
- Rigid bend construction for durability
- Made from polyvinyl chloride (PVC) material
- Suitable for cable trays 300mm wide and 75mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure fitting and compliance with electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protecting electrical cables in building infrastructure
- Suitable for horizontal cable direction changes in cable tray systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is durable and recyclable, reducing waste
- Protects cables to extend their lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Legrand PVC Cable Tray 90° Flat Bend with Cover 300mm x 75mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
