Trade Discount 20%

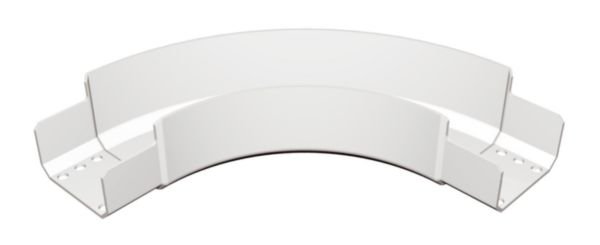

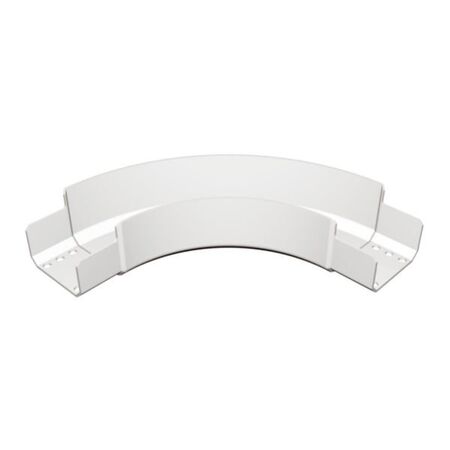

Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @Each of 1 | by Cablofil
Legrand PVC Cable Tray 90° Flat Bend with Cover is designed for efficient cable management in commercial and industrial settings. This rigid bend allows for horizontal direction changes while protecting cables, making it ideal for routing electrical installations. Made from durable PVC, it ensures longevity and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637933
Alternatively Known As: PVC Cable Tray Bend, 90 Degree Cable Tray Elbow, Cable Tray Corner with Cover, PVC Cable Management Bend
Technical Specifications
- Change of direction: Horizontal 90°
- Construction type: Rigid bend
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 100 mm
- Suitable for cable tray width: 500 mm
- Side perforation: No
- Bottom perforation: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 100mm x 500mm x 500mm
- Weight: 1.2 kg
Key Features
- 90° horizontal flat bend for cable tray systems
- Includes cover for cable protection
- Rigid bend construction for durability
- Made from polyvinyl chloride (PVC) material
- Suitable for cable trays 500mm wide and 100mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure compliance with electrical and building standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protecting electrical cables in building infrastructure
- Suitable for horizontal cable direction changes in cable tray systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is durable and recyclable, reducing waste
- Protects cables to extend their lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray 90° Flat Bend with Cover 500mm x 100mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
