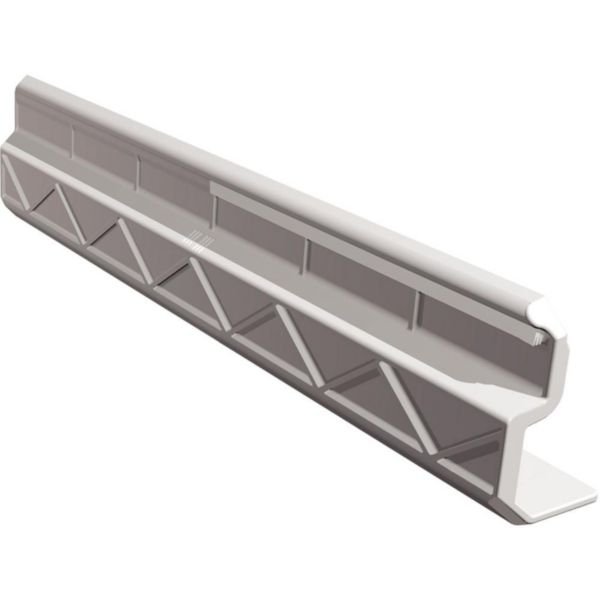

PVC Cable Tray Coupler | Snapable Connection | 200-400mm Widths | 75mm Height | @Each of 1 | by Cablofil
The PVC Cable Tray Coupler is designed for seamless electrical cable management, featuring a snapable connection for easy installation. Ideal for commercial and industrial applications, it accommodates cable trays with widths from 200mm to 400mm and a height of 75mm, ensuring secure and compliant connections. Made from durable PVC, it operates effectively in temperatures ranging from -5°C to 60°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Polyvinyl chloride (PVC)
- Type of connection: Snapable
- Suitable for cable tray width: 200-400 mm
- Suitable for cable tray height: 75 mm
- Operating temperature: -5°C to 60°C
- Storage temperature: -5°C to 60°C
- Colour: White (RAL 7030)
- Not suitable for wire mesh trays or cable ladders
- Not halogen free
- Dimensions (H x L x W): 75mm x 350mm x 350mm
- Weight: 0.5 kg
Key Features
- Snapable type of connection for easy installation
- Made from durable polyvinyl chloride (PVC) material
- Suitable for cable trays with width 200-400 mm and height 75 mm
- Operating temperature range from -5°C to 60°C
- White color with RAL number 7030
Professional Installation Requirements
- Installation should be performed by qualified electrical or cable management professionals to ensure secure and compliant cable tray connections.
Applications
- Electrical cable management in industrial and commercial buildings
- Supporting and joining PVC cable trays in electrical installations
- Suitable for cable trays with widths from 200mm to 400mm and height 75mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is recyclable and designed for long service life reducing replacement waste
- Supports organized cable management which can improve energy efficiency in electrical systems
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray Coupler for Tray Height 75mm Widths 200mm to 400mm is available for immediate purchase, ideal for electrical cable management in commercial and industrial applications.
