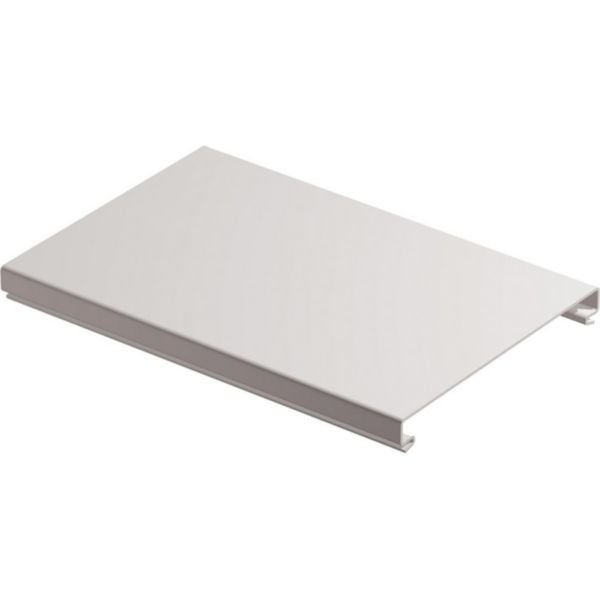

PVC Cable Tray Cover 150mm | 1.2mm Thickness | Snapped On Fastening | Grey | @Each of 1 | by Cablofil
The PVC Cable Tray Cover 150mm is designed for effective cable management in industrial and commercial settings. With a durable 1.2mm thickness and easy snapped-on fastening, it protects cables from dust and debris while ensuring compliance with safety standards. Ideal for environments requiring reliable cable tray covers, this grey cover operates within a temperature range of -5 to 60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cover width: 150 mm
- Material thickness: 1.2 mm
- Length: 3000 mm
- Material: Polyvinyl chloride (PVC)
- Colour: Grey (RAL 7030)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Type of fastening: Snapped on
- Not suitable for wire mesh tray or cable ladder
- Not halogen free
- Dimensions (H x L x W): 20mm x 3000mm x 150mm
- Weight: 2.5 kg
Key Features
- Cover width: 150 mm
- Material thickness: 1.2 mm
- Length: 3000 mm
- Snapped on type of fastening for easy installation
- Made from durable polyvinyl chloride (PVC)
- Operating temperature range: -5 to 60 °C
- Storage temperature range: -5 to 60 °C
- Colour: Grey (RAL 7030)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure fitting and compliance with safety standards.
Applications
- Cable management in industrial and commercial electrical installations
- Protection of cables in cable trays from dust and debris
- Suitable for use in environments requiring cable tray covers
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is durable and long-lasting, reducing the need for frequent replacements
- Helps protect cables from environmental damage, extending cable life and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
Legrand PVC Cable Tray Cover 150mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
