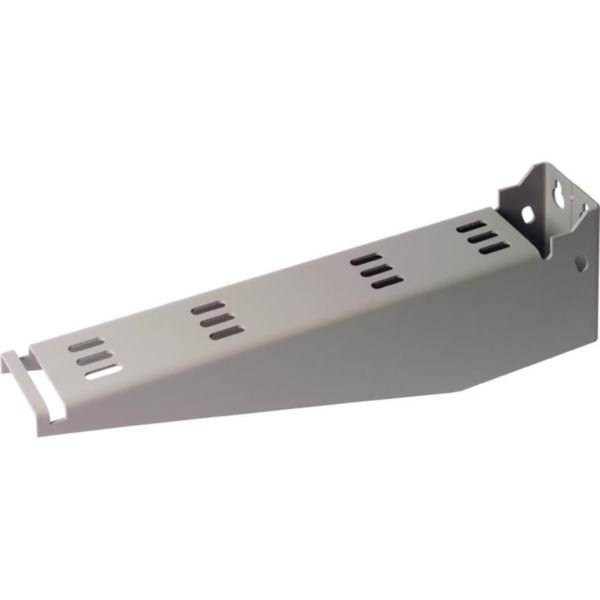

PVC Cable Tray Epoxy Coated Steel Cantilever Arm | 400mm Width | 1350 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
The PVC Cable Tray Epoxy Coated Steel Cantilever Arm is designed for robust cable support in industrial and commercial settings. With a 400mm width and a safe working load of 1350 N, this arm ensures secure installation for cable management systems. Its epoxy-coated steel construction offers durability and corrosion resistance, making it ideal for various applications, including wall mounting and compliance with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Epoxy Coated Steel Cantilever Arm | 400mm Width | 1350 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637979
Alternatively Known As: Cable Tray Support Arm, Cantilever Bracket for Cable Tray, PVC Cable Tray Bracket, Epoxy Coated Cable Tray Support
Technical Specifications
- Length: 450 mm
- Width: 80 mm
- Height: 130 mm
- Suitable for cable support system width: 400 mm
- Material: Steel with epoxy coating
- Safe working load: 1350 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Colour: Grey (RAL 7030)
- Halogen free: Yes
- Angle: 90°
- Dimensions (H x L x W): 130mm x 450mm x 80mm
- Weight: 1.5 kg
Key Features
- Epoxy coated steel construction for durability and corrosion resistance
- Cantilever arm design for secure cable tray support
- Safe working load of 1350 N according to IEC 61537
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems and structural support requirements to ensure safety and compliance.
Applications
- Supports and fixings for PVC cable tray systems in industrial and commercial electrical installations
- Wall mounting for cable management systems
- Suitable for cable support systems with widths of 400mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Epoxy coating enhances product lifespan reducing replacement frequency and waste
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
Legrand PVC Cable Tray Epoxy Coated Steel Cantilever Arm 400mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
