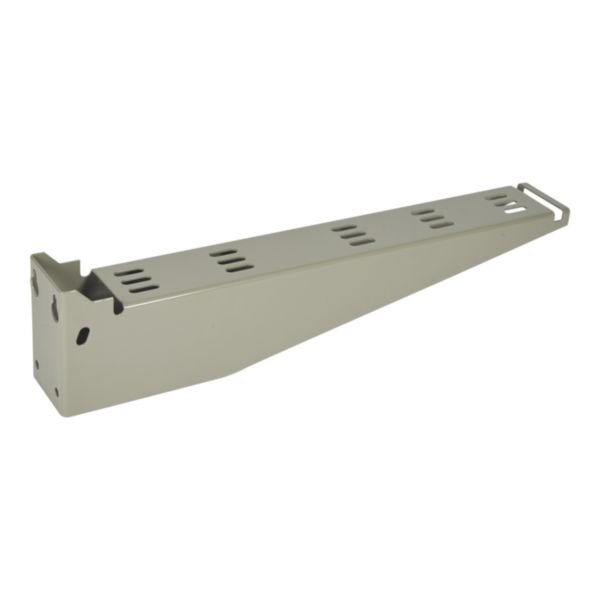

PVC Cable Tray Epoxy Coated Steel Cantilever Arm | 500mm Width | 1700 N Safe Working Load | Grey Color | @Each of 1 | by Cablofil
The PVC Cable Tray Epoxy Coated Steel Cantilever Arm is designed for robust cable support systems, featuring a 500mm width and a safe working load of 1700 N. Ideal for industrial and commercial electrical installations, this durable arm is made from epoxy-coated steel, ensuring corrosion resistance and longevity. Its halogen-free material and operating temperature range of -20°C to 120°C make it a reliable choice for effective cable management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PVC Cable Tray Epoxy Coated Steel Cantilever Arm | 500mm Width | 1700 N Safe Working Load | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637980
Alternatively Known As: Cable Tray Support Bracket, Cantilever Arm Bracket, PVC Cable Tray Bracket, Epoxy Coated Cable Tray Arm
Technical Specifications
- Length: 550 mm
- Width: 80 mm
- Height: 130 mm
- Suitable for cable support system width: 500 mm
- Model: Wall bracket
- Angle: 90°
- Safe working load: 1700 N (IEC 61537)
- Material: Steel
- Surface protection: Epoxy coating
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Colour: Grey (RAL 7030)
- Dimensions (H x L x W): 130mm x 550mm x 80mm
- Weight: 1.5 kg
Key Features
- Epoxy coated steel construction for durability and corrosion resistance
- Cantilever arm design suitable for cable support systems with 500mm width
- Safe working load of 1700 N according to IEC 61537
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Grey color with RAL number 7030
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems and structural support installation to ensure safety and compliance with standards.
Applications
- Supports and fixings for PVC cable tray systems in industrial and commercial electrical installations
- Used for cable management and support in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Epoxy coating enhances product lifespan reducing replacement frequency and waste
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
Legrand PVC Cable Tray Epoxy Coated Steel Cantilever Arm 500mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
